The high-flow dosing solution
Specific features

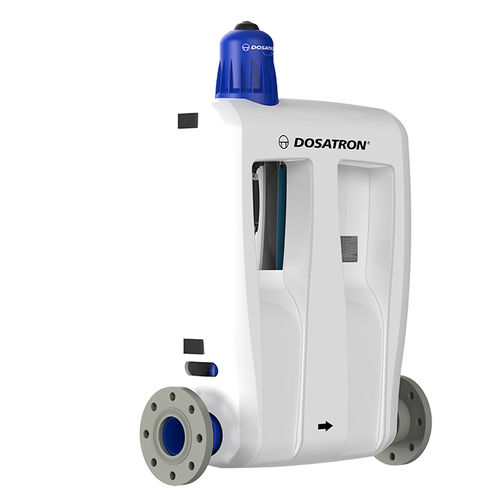

The D30WL range of dispenser is specifically designed for high-flow drinking water, treatment and disinfection applications, and for networks up to 30 m3/h.
The D30WL dispensers have also obtained the mandatory French approval for all equipment in contact with water intended for human consumption (ACS). See more.
-Materials and options adapted to water treatment additives.
-Operates without electricity.
-Allows fully proportional dosing, regardless of flow and pressure variations.
-Maintenance without tools
Specifications
Injection range 0,003 - 0,03 % [1:30000 - 1:3000]
Water flow range 8000 - 30 000 l/h
Operating water pressure 0,5 - 8 bar
Concentrated additive injection 0,24 - 9 l/h
Stroke volume ~0,53 l
Connections Flange 3”, Thread NPT
Serial equipments
Seals for alkaline additives
Seals for acidic additives, oils, deodorants, phyto
ACS Certification - Drinking Water France
Available options
(Integrated by-pass) system for manual activation of the additive suction (on) and stop (off)
Sectors
-Drinking water treatment
