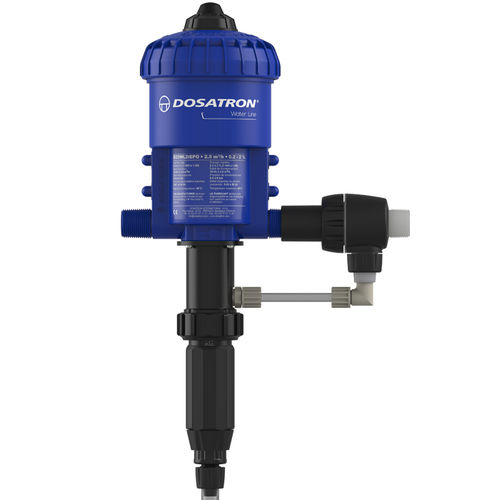

Dosing pump D25WL2 IE PO

waterpiston

The D25WL2 IE PO is an efficient and attractive solution for in-line polymer dosing, thanks to standard equipment adapted to viscous products, its external injection and its dynamic mixer. .Proportional dosing and without electricity .Proportionality dependent on water flow .Significant homogeneity Specifications .Injection range 0,2 - 2 % .Concentrated additive injection 0,02 l/h - 50 l/h .Stroke volume ~ 0,45 l .Connections NPT-BSP 3/4'' M Ø 20x27mm Serial equipments Seals for acidic additives Kit for viscous additives recommended for more than 200 or 400 cPs (depending on model) External Injection Available options Dynamic Mixer PVDF housing for highly concentrated acids and other aggressive concentrates Seals for highly concentrated acids (>15%)
