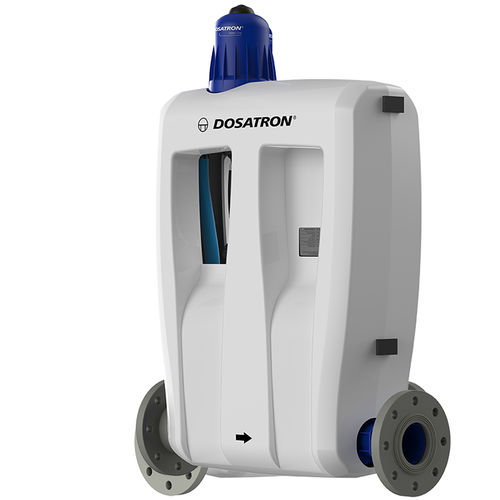

Dosing pump D30WL30000IE ACS

waterpiston

The D30WL range of chlorine dosing pumps is specifically designed for high-flow drinking water, treatment and disinfection applications, and for networks up to 30 m3/h. The D30WL chlorine dosing pumps have also obtained the mandatory French approval for all equipment in contact with water intended for human consumption (ACS). It is characterized by: .Materials and options adapted to water treatment additives .Operates without electricity .Allows fully proportional dosing, regardless of flow and pressure variations .Compatible with hard water .Maintenance without tools Specifications .Injection range 0,003 - 0,03 % [1:30000 - 1:3000] .Concentrated additive injection 0,24 - 9 l/h .Stroke volume ~0,53 l .Connections Flange 3”, Thread NPT How does it work ? The D30WL is built up of : .A flow divider in the lower part (patented technology) which ensures a continuous flow division with a constant ratio of the input flow .A D3 dosing pump in the upper part ensuring the dosing of the desired additive, in proportion to the flow rate supplied by the flow divider As all Dosatron dosing pumps, the dosing of the additive by the system as a whole is proportional to the volume of water, regardless of the variations in pressure and flow rate that may occur. Serial equipments Seals for alkaline additives ACS Certification - Drinking Water France Available options (Integrated by-pass) system for manual activation of the additive suction (on) and stop (off)
