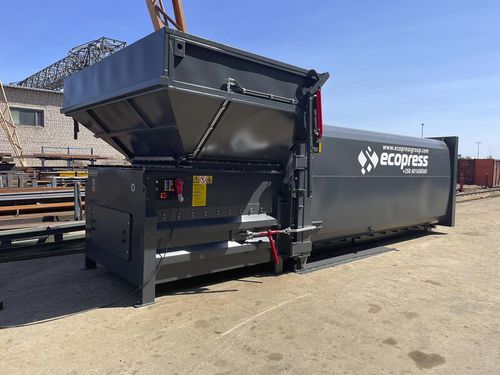

Waste treatment system ETS-45/500

Overall length / width / height, mm 2900 / 2100 / 2325 Overall weight, tons 3.6 Charge box length / width / height, mm 1520 / 1900 / 710 Charge box capacity, m³ 2 Charge box swept volume, m³ 1.52 Ram head penetration, mm 250 Dry cycle time, seconds 45 Throughput per hour, m³ 150 System pressure, bars 200 Boost pressure, bars 220 Operating pressure (normal), tonnes 40 Operating pressure (boost), tonnes 50 Ram face pressure running, kg/cm² 4.47 Ram Boost pressure, kg/cm² 5.43 Bore of cylinders, mm 115 Diameter of hard chromed rod, mm 63 Electric motor size, kW 15 Reservoir capacity, liters 60 ETS-45/500 is our small sized Transfer Station compactor with a capability of handling up to 150 cubic meters per hour of waste with a swept volume of 1,52 cubic meters, making this basic compactor an efficient solution in the design of small volume Refuse Transfer Stations. This reinforced stationary compactor is capable of transfer waste material quickly and efficiently into the large compaction containers with payload at least 13 tons. Compaction ram penetrates the container by 250 mm to ensure stable compaction and eliminating spill-back. The press construction may include hydraulic grab claw container attachments for quick and comfortable container changeover. The compactor is operated by control desk located at the compactor. Compaction container capacity is from 20 to 44 m³. For hooklift/roll-off tippers or sea freight containers or container trailers Container 80 and 100% full light Fill level, error or service requirement notification via GSM GSM - alarm systems Hardox 450 plate in bottom and ram construction
