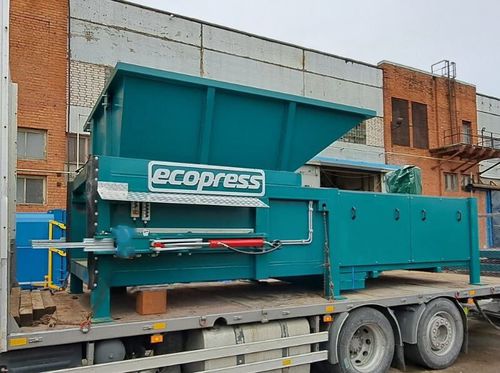

Waste treatment system ETS-60/750

Overall length / width / height, mm 5760 / 1990 / 2325 Overall weight, tons 8.8 Charge box length / width / height, mm 2420 / 1800 / 1010 Charge box capacity, m³ 4.4 Charge box swept volume, m³ 3.14 Ram head penetration, mm 400 Dry cycle time, seconds 35 Throughput per hour, m³ 300 System pressure, bars 280 Boost pressure, bars 300 Operating pressure (normal), tonnes 50 Operating pressure (boost), tonnes 60 Ram face pressure running, kg/cm² 3.33 Ram Boost pressure, kg/cm² 4.44 Bore of cylinders, mm 190 Diameter of hard chromed rod, mm 110 Electric motor size, kW 22 Reservoir capacity, liters 300 ETS-60/750 is our middle sized Transfer Station compactor with a capability of handling up to 300 cubic meters per hour of waste with a swept volume of 3,14 cubic meters, making this powerful compactor an efficient solution in the design of medium volume Refuse Transfer Stations. This extremely powerful compactor is capable of transfer large amounts of waste material quickly and efficiently into the large compaction containers with payload at least 15 tons. Compaction ram penetrates the container by 400 mm to ensure maximum compaction and eliminating spill-back. The press construction includes hydraulic grab claw container attachments for quick and comfortable container changeover. The compactor is operated automatically or by operator with touch screen monitor or buttons from the control room, an additional control desk is located at the compactor. Compaction container capacity is from 20 to 44 m³. Pre-chamber compaction system Several operating variants including a fully automatic version Individual hopper designs
