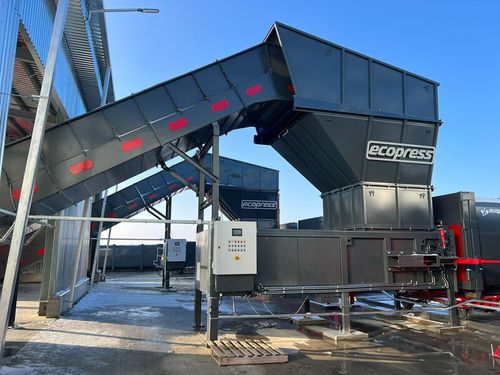

Waste treatment system ETS-60/1000

Overall length / width / height, mm 5760 / 1990 / 2325 Overall weight, tons 9.4 Charge box length / width / height, mm 2420 / 1800 / 1210 Charge box capacity, m³ 4.8 Charge box swept volume, m³ 4.14 Ram head penetration, mm 400 Dry cycle time, seconds 35 Throughput per hour, m³ 400 System pressure, bars 280 Boost pressure, bars 300 Operating pressure (normal), tonnes 50 Operating pressure (boost), tonnes 60 Ram face pressure running, kg/cm² 2.77 Ram Boost pressure, kg/cm² 3.33 Bore of cylinders, mm 190 Diameter of hard chromed rod, mm 110 Electric motor size, kW 22 Reservoir capacity, liters 300 Pre-chamber compaction system Several operating variants including a fully automatic version Individual hopper designs Diverse hydraulic units with standard power classes up to 75kW Light barriers as start device and / or as overfill prevention device Several variants of remote control as cable, wireless, from desktop Traversing system for the compaction containers Container weighing system Automatic or manual closure gate (guillotine) Hydraulic Locking mechanism for container positioning to press Attached tipping Hopper up to 60m3 for loading waste in to press Feeding conveyer Ramp for vehicles max 30 tons Cover hopper over filling opening Discharge door with seal Maintenance hatch with safety limit switch Additional integrated or portable container tipping mechanisms Bin Lifting device integrated or stationary with own power pack 230/380V switch box panel Timer to start / stop compaction Automatic start with photo or ultrasonic sensor Oil heating system Oil cooling system Steel or Aluminum lid Waste feeding channel Guiding rails, 3m or 6m
