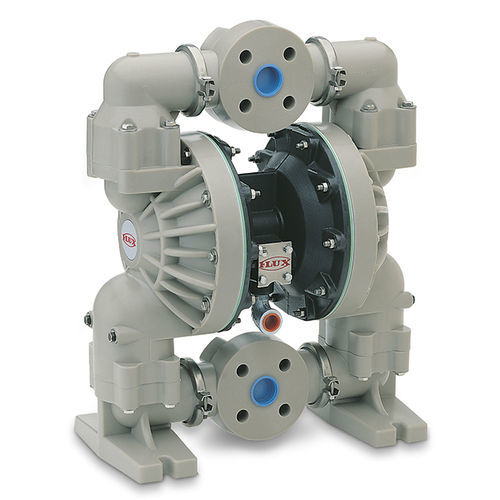

Wastewater pump FDM 40
self-primingdiaphragm

wastewater pump
wastewater pump
Add to favorites
Compare this product


Characteristics

Application
for wastewater
Priming
self-priming
Other characteristics
diaphragm
Flow

380 l/min
(100.38538 us gal/min)

Pressure

8 bar
(116.03 psi)

Description

The FLUX air-operated diaphragm pump FDM 40 in injection-moulded version is self-priming and protected against dry running. The pump is distinguished for its versatility and can be used for pumping low to high viscosity media with solid particles, abrasive media, highly flammable media or liquids with high gas content. Technical data: -Suction head: max. 6,0 m1 -Suction head product-filled: max. 7,6 m1 -Size of solids: max. 6,4 mm -Viscosity: min. 1 mPas - max. 15000 mPas2 -Housing Materials: Aluminium, Grey cast iron, Polypropylene, Polyvinylidene fluoride, Stainless steel -Media / Fluids: Abrasive media, Aggressive media, Highly flammable media, Viscous media -Connection pressure side: G 1 1/2 oder Flansch 1 1/2" -Connection suction side: G 1 1/2 oder Flansch 1 1/2" Product attributes -Moulded version -Self-priming even from a dry start -Variable delivery rates by adjusting air pressure to the pump -No need of by-pass control -Fully submersible -Unbalanced air valve design eliminates stalling -Oil-free operation -Regulating valve insensitive to foreign matter in the air Benefits -Suitable for dry run operation -Blockage-free, infinitely adjustable operation -Long service life -Free of wear -Service-friendly operation -Versions available for use in hazardous areas -Available in plastic and as metal version
