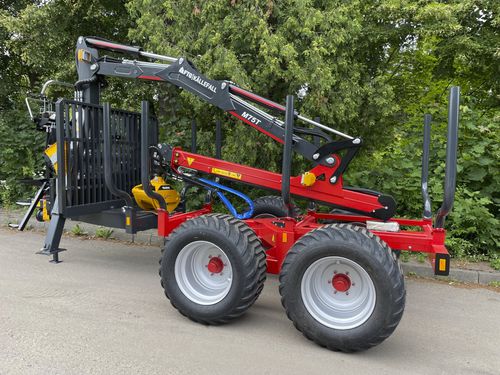

Trailer-mounted forestry crane M75T

tractor-mountedknuckle boom

The FTG Källefall forestry crane M75T has a crane length of 7.5 m and a lifting capacity of 500 kg at maximum reach. The crane has a lifting torque of 55 kNm (gross) and a slewing torque of 16 kNm. The M75T forestry crane is equipped with a slewing motor with 4 slewing cylinders and has a wide-angle joint, telescopic boom, 4 tonne endless rotator, hydraulic hose connection to the crane column and rotator, rotator joint with pendulum brake, FB190WF grab and rotary lever control. The overhead lifting cylinder offers the best lifting capacity in a normal working range at around 4 metres from the slewing gear. The main boom is curved to achieve a better lifting moment at the ‘correct’ reach of 4 metres. The recommended oil flow for operating the M75T crane is 40 - 60 litres/min. Loading crane M75T suitable for: • Trailer FB90D • Trailer FB100 • Trailer FB100-2WD • Trailer FB120D • 3-point attachment frame
