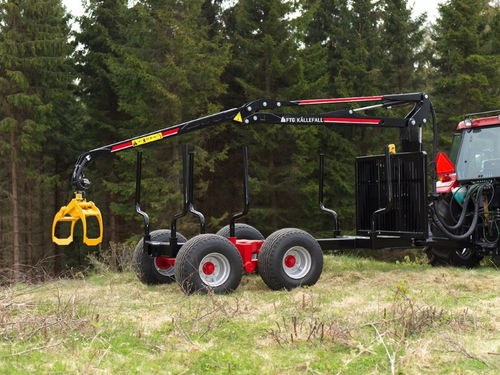

Trailer-mounted forestry crane P52

tractor-mountedknuckle boomfor wood chipper

The Källefall P52 forestry crane has a crane length of 5.2 metres and a lifting capacity of 450 kg at maximum reach. It is equipped with a wide-angle joint and a telescopic arm with an internally positioned cylinder for even greater functionality The P52 crane is equipped as standard with a 3-tonne endless rotator, an FB160 timber grab, a rotator joint without pendulum brake, a rotary lever control and a 4-cylinder slewing gear. The forestry crane has a lifting torque of 28 kNm (gross) and a slewing torque of 8.5 kNm. • Unique parallel movement • The same lifting torque over the entire loading range • Runs with 60-65 % less oil flow The recommended oil flow for operating the P52 crane is 20 - 25 l/min. Loading crane P52 suitable for: • Trailer FB70 • Trailer FB70-2WD • 3-point attachment frame
