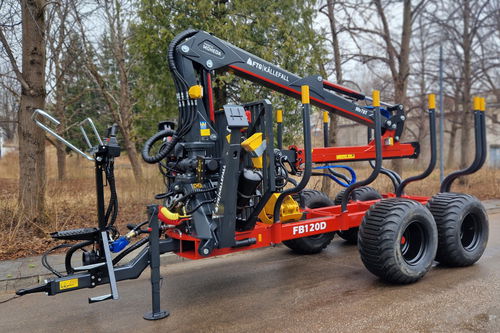

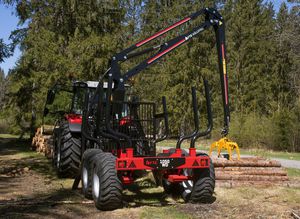

Trailer-mounted forestry crane MV78T

tractor-mountedknuckle boomfor wood chipper

The FTG Källefall forestry crane Mv78T has a crane length of 7.8 m and a lifting capacity of 675 kg at maximum reach. The crane has a lifting torque of 81 kNm (gross) and a slewing torque of 21 kNm. The Mv78T forestry crane is equipped with a slewing motor with 4 slewing cylinders and has a wide-angle joint, telescopic boom, 6 tonne endless rotator, hydraulic hose connection to the crane column and rotator, rotator joint with pendulum brake, FB260 grab and rotary lever control. The Mv78T has a number of improved features: longer reach, higher lifting torque, higher slewing torque and better movement pattern. The crane has a newly developed telescopic boom with a protected hose guide. The recommended oil flow for operating the Mv78T crane is 70 - 90 l/min. Loading crane Mv78T suitable for: • Trailer FB120D • 3-point attachment frame
