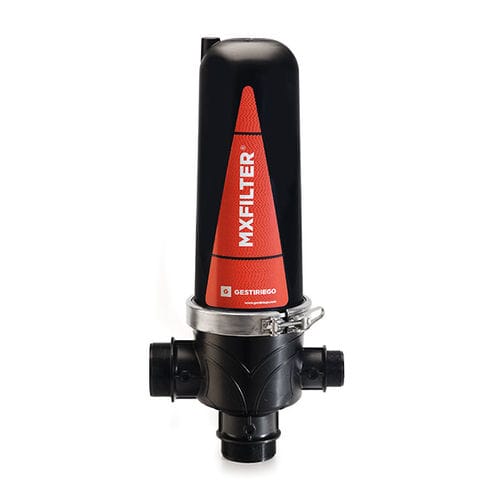

Irrigation disc filter MXFILTER

meshplasticautomatic

Short description

MXFILTER is a manual plastic ring filter designed for irrigation applications, offering farmers and installers flexible installation and handling options. Its base accepts multiple connection combinations for increased adaptability. It can be used individually or in banks of filters and supports manual cleaning and compatibility with automatic backwash systems.

Materials and use

Manufactured from materials resistant to agricultural chemicals and fertilisers. The product is characterised by a large filtration surface and a low pressure drop, suitable for irrigation systems requiring reliable particle retention and consistent hydraulic performance.

Manual ring filter characteristics

The MXFILTER uses high-quality double-sided plastic rings. One side features S-shaped inlet channels and the other concentric outlet grooves, with ring geometry and orientation creating an extended filtration network and a large effective filtering area.

Benefits

• Increased filtration surface
• Reduced pressure loss
• Easy and quick ring cleaning
• Higher flow rates
• Improved filtration uniformity
• Higher particle retention capacity
• Linear and stable filtration degree
• Wide range of filtration meshes

Advantages

• Disc-based filtration for effective cleaning
• Manufactured in durable plastic material
• Water and energy savings in irrigation systems
• Lid includes 1/2" auxiliary socket for air release or drain valve
• High-strength clamp system resistant to pressure and temperature variations
• Easy installation, handling and maintenance
• 3-outlet system enabling multiple connection options and reducing additional parts

Operation

Dirty water enters the S-shaped inlet channels of the rings and passes through to adjacent outlet channels. Particles are retained in the inlet channels by concentric ring grooves while cleaned water flows into the filter element and onward to the irrigation system.

Technical table (representative selection)
SIZE | CONNECTION | MAX. FLOW | BOX | CODE | CODE
2" (Short) | 2" Thread / 2" Rosca | 20 | 35 | 1200 | 461746
Short | 2" Thread | 20 | FC3 | 451376 | 451377
Long | 2" Thread | 25 | FL3 | 451378 | 451379
3" | 2" Victaulic | 25 | FL2 | 458362 | 458363

Technical specifications

• Model / series: MXFILTER
• Body / rings: high-quality plastic
• Ring design: double-sided rings with S-shaped inlet channels and concentric outlet grooves
• Filtration surface: large effective filtering area due to ring geometry
• Cleaning: manual and compatible with automatic backwash cleaning
• Resistance: materials resistant to agricultural chemicals and fertilisers
• Hydraulics: low pressure drop, increased flow rates
• Connections: 3-outlet system enabling multiple connection combinations (examples: 2" Rosca, 2" Thread, 2" Victaulic)
• Auxiliary: lid includes 1/2" auxiliary socket for air release or drain valve
• Fixing: high-strength clamp system resistant to pressure and temperature variations
• Available meshes / filtration degrees: examples include 120 mesh and 150 mesh
