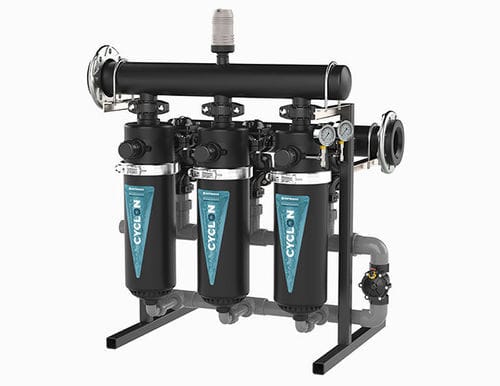

Water filter CYCLON

hydraulicadaptable

Overview
Automatic ring-separator filter with ring separation and inverted hydraulic architecture, designed to improve filtration efficiency in water containing high loads of inorganic solids (sands, heavy silts).

Technical details and operation
The CYCLON series optimizes fluid mechanics using an inverted configuration that promotes gravimetric and centrifugal settling of sands and heavy silts before the fluid reaches the filter pack. During regeneration the system combines mechanical ring separation with counterflow backwash and an independent automatic purge, reducing premature blinding and maintenance needs.

Key features

• Inverted hydraulic architecture promoting sand and heavy-silt settling.
• Automatic backwash combined with ring separation and helical discharge system.
• Independent automatic purge for sediment extraction.
• High efficiency for waters with elevated inorganic solids content.
• Modular installation adaptable to multiple flow rates and pipe diameters.

Models and technical data
Series | Model | Inlet/Outlet collector (mm) | Drain (mm) | Max flow m³/h | Filtration area cm²
2" | 2 | 90 | 50 | 40 | 3.190
2" | 3 | 110 | 50 | 60 | 4.785
2" | 4 | 110 | 50 | 80 | 6.380
2" | 5 | 110 | 50 | 100 | 7.975
3" | 2 | 110 | 63 | 60 | 3.190
3" | 3 | 110 | 63 | 90 | 4.785
3" | 4 | 160 | 75 | 120 | 6.380
3" | 5 | 160 | 75 | 150 | 7.975

Recommended flows by water quality
Series | Model | Max flow | <50 ppm | 50/75 ppm | 75/100 ppm
2" | 2 | 40 | 30 | 26 | 22
2" | 3 | 60 | 45 | 39 | 33
2" | 4 | 80 | 60 | 52 | 44
2" | 5 | 100 | 75 | 65 | 55
3" | 2 | 60 | 48 | 44 | 40
3" | 3 | 90 | 72 | 66 | 60
3" | 4 | 120 | 96 | 88 | 80
3" | 5 | 150 | 120 | 110 | 100

Characteristics / technical specifications

• Series: CYCLON (inverted hydraulic architecture).
• Ring-separation system combined with counterflow backwash and independent automatic purge.
• Suitable for waters with high inorganic solids load (sands, heavy silts).
• Modular installation adaptable to different flows and diameters (2" and 3").
• Available models: 2, 3, 4, 5 in 2" and 3" versions with maximum flows from 40 to 150 m³/h depending on model.
• Filtration area per model available in the table (3.190 to 7.975 cm²).
