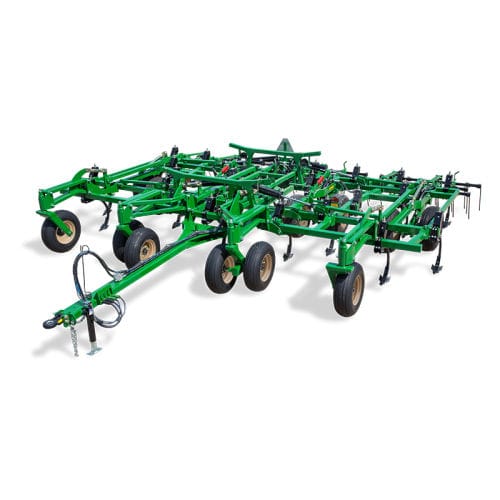

Chisel field cultivator ULTRA-CHISEL™

towedwith rollerwith harrow

Offered in working widths from 21' to 45' (6.4-13.7m), these heavy-duty chisel plows feature 900 lb. (408 kg) trip force for consistent tillage in the 8" (20cm) depth range. The Ultra-Chisel’s rocking bolster system on the center rockshaft ensures even, steady depth control in undulating field conditions, offering unmatched depth uniformity when compared to other large tillage tools in today’s chisel marketplace. The Ultra-Chisel does a complete job of tilling the entire 6" to 8" (15-20 cm) soil profile, often eliminating the need for a follow-up pass prior to the seedbed preparation pass. To create a vertically-tilled soil environment, Ultra-Chisel can be equipped with 7" (18 cm) wing points, which are specially designed to create total fracture across the entire profile rather than just rip slots in the soil. Alternatively, large 12" or 16" (30 or 40 cm) sweeps can be used for deep tillage and weed control. Optional rear-leveling attachments include a five-bar high-residue spike harrow, a three-bar heavy coil tine, or a combination of harrows with a finishing reel.
