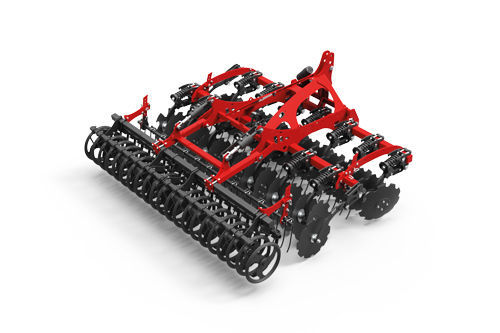

Mounted disc harrow Occitan T series

2-sectionwith hydraulic adjustmentwith roller

Product summary
Occitan is an independent disc harrow designed for shallow stubble cultivation with high field capacity. It reduces operational costs by efficiently destroying and incorporating plant residues. A seed drill can be integrated to increase agronomic value and reduce production inputs.

Applications

• Shallow stubble cultivation after harvest.
• Incorporation of large volumes of plant residues (e.g. grain maize, cover crops).
• Working up to 18 cm deep for high-capacity stubble cultivation.

Agronomy benefits

• Residue decomposition: distributes crop residues and organic matter evenly in the surface layer, promoting humification and mixing with soil.
• Self-seeding control: passes at shallow depth (≤5 cm) promote seed exposure and emergence; a final pass destroys emerging weeds and can reduce the surface seed bank by about 40%.
• Pest control: mechanical action and surface dehydration destroy adults and eggs present on the surface, helping reduce slugs and other insects.
• Soil warming: brings moisture up from lower layers and aerates the surface, improving soil warming and conditions for rapid germination.
• Soil-seed contact: ensures good seed-to-soil contact for water uptake and gas exchange via appropriate covering and loosening.
• Erosion control: discs and rollers structure the surface, break crusts, improve water infiltration and retention, create mulch and micro‑furrows to limit erosion and evaporation.

Working part / Design details

• Two disc types: large notched discs (Ø 620 mm, 6 mm thick) and mulcher discs; discs are self-sharpening and curved to cut residues and ensure homogeneous mixing.
• Two discs per arm with 230 mm spacing; staggered bearings increase clearance, better weight distribution and visibility.
• Non-stop spring-loaded safety: release starts at 350 kg, reaches 420 kg at 10 cm, then decreases until 18 cm to limit stresses on the frame and working elements.
• High penetration capacity ensured by tilt and attack angles and high weight per disc for mounted and semi-mounted models.
• Large clearances prevent clogging with high quantities of plant residues. Spacing between disc gangs: Occitan 50/60 = 950 mm; Occitan T60 = 1 100 mm; Occitan T70 = 1 350 mm. Underbeam clearance: 725 mm.
• Maintenance-free bearings: reinforced sealing and lubrication, large support surface, 3-year bearings guarantee for the Occitan range.
• Hydraulic roller adjustment: standard on semi-mounted models, optional on mounted models; depth control via roller, adjustable from tractor cabin.
• Front stabilization wheels available (13.0/55x16 Ø 770 mm) adjustable mechanically or hydraulically for high-speed work on semi-mounted models.
• Following harrows (up to three) and side deflectors to channel soil flow and improve finishing; left deflector standard, right deflector optional and pivot-mounted to retract on impact.

Available models (overview)
Model | Recommended tractor power (hp) | kW | Working width | Transport width
Occitan 50 | 85 → 210 hp | 62.52 → 154.46 kW | 2.50 → 4.00 m | 2.50 → 4.00 m
Occitan 60 | 125 → 310 hp | 91.84 → 228.01 kW | 4.20 → 5.20 m | 3.00 → 3.00 m
Occitan T60 | 125 → 310 hp | 91.84 → 228.01 kW | 4.20 → 6.20 m | 3.00 → 3.00 m
Occitan T70 | 300 → 450 hp | 220.65 → 330.99 kW | 7.20 → 8.20 m | 3.00 → 3.00 m

Key points / Overview

• Non-stop spring-loaded safety and two discs per arm.
• Large diameter self-sharpening discs.
• High machine clearance to avoid clogging.
• Robust frame and structure.
• Eight roller options for different finishes (square bar, double square bar, Impak V/U, Emopak P/V, double rollers, etc.).
• Continuous hydraulic roller adjustment on semi-mounted models.
• Easy configuration according to tractor power and required options.
• Side disc deflectors and following harrows to channel soil flow and improve finish.
• Maintenance-free bearings with reinforced sealing and lubrication.

Technical specifications

• Commercial name: Occitan.
• Type: Shallow stubble cultivator / independent disc harrow.
• Disc diameter: Ø 620 mm; disc thickness: 6 mm (large notched discs).
• Working depth: up to 18 cm.
• Disc spacing on arm: 230 mm (two discs per arm).
• Underbeam clearance: 725 mm.
• Disc gang spacing: Occitan 50/60 = 950 mm; Occitan T60 = 1 100 mm; Occitan T70 = 1 350 mm.
• Bearings: reinforced sealing and lubrication; 3-year guarantee on bearings across the Occitan range.
• Roller types available: Square bar, Double square bar, Impak V, Impak U, Emopak P, Emopak V, Double Impak V, Double Impak U (8 variants).
• Safety release: non-stop spring system, release starts at 350 kg, max resistance 420 kg at 10 cm.
• Hydraulic roller adjustment: standard on semi-mounted models, optional on mounted models; depth control from tractor cabin.
• Models and recommended tractor power ranges: Occitan 50 (85–210 hp), Occitan 60 (125–310 hp), Occitan T60 (125–310 hp), Occitan T70 (300–450 hp).
