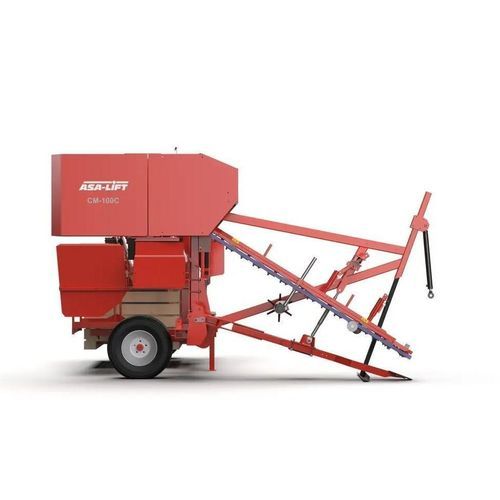

Carrot harvesting machine CM-100C

parsniptractor-mounted1-row

Overview
The CM-100C is a tractor-mounted, single-row top-lifter designed for mechanical harvesting of carrots, parsnips and similar root crops. It integrates a continuous picking web and a box platform for direct loading into boxes. Its simple, modular design suits small farms and compact tractors.

Highlights

• High crop protection: top lifter belt keeps produce suspended to minimise contact with machine parts.
• Precise haulm cutting: two intermeshing knives synchronized by gears ensure clean cutting at the base.
• Extended service life: sealed labyrinth bearings prevent dirt ingress and prolong bearing life.

Standard equipment

• Rotatable conical pick-up rollers
• Overload protection (shear bolts) for pick-up rollers
• Share arm, cranked to the right, with offset-mounted share blade
• Mechanical stone protection (shear pin) for the share
• Height adjustment of share relative to main frame via spindle
• Pick-up belt, length 335"
• Pick-up belts with grooved surface "PK5"
• Manual speed adjustment of top lifter belt via flow control valve
• Fixed mechanical attachment of top lifter belt to main frame
• 1x hydraulically driven rotating root cleaner
• Manual speed adjustment of root cleaner via flow control valve
• Manual height adjustment of root cleaner with clamping screws
• Spring-loaded belt cleaners at rear deflection
• Mechanical belt tensioner (turnbuckle)
• Cutting unit driven by one hydraulic motor
• Picking web, pitch 28 mm, rubber covered, width 550 mm
• Manual speed adjustment of picking table/picking web via flow control valve
• Box platform PLUS — includes hydraulic lowering for a single box
• Drop height reducer fitted to picking table/picking web
• Wheels 10.0/75 x 15.3
• Operator unit "i6": control box for switching hydraulic functions

Technical specifications

• Number of rows: 1
• PTO input speed: 540 rpm
• Pick-up belt length: 335"
• Pick-up belts: grooved surface "PK5"
• Picking web: pitch 28 mm, rubber covered, width 550 mm
• Hydraulically driven rotating root cleaner: 1x
• Cutting unit driven by one hydraulic motor
• Box platform PLUS with hydraulic lowering for a single box
• Wheels: 10.0/75 x 15.3
• Operator unit: "i6" control box for hydraulic functions
