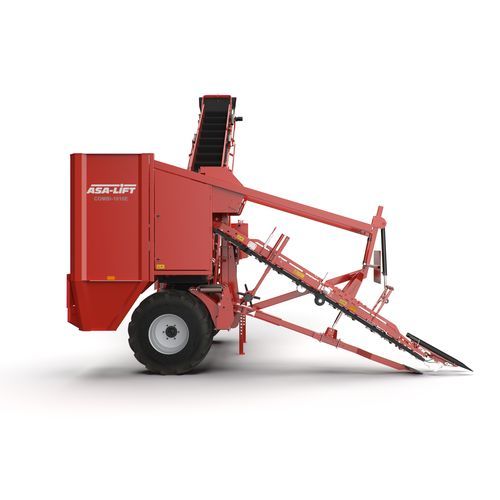

Carrot harvester machine Combi-1010E

tractor-mounted1-rowtop lift

Product description The Combi-1010E is a tractor-mounted, single-row top-lifter harvester with a left-side loading elevator. Its top-lifting assembly provides efficient lifting, effective cleaning and gentle crop handling. The unit includes a quick-release system for the pick-up belt, maintenance-free mounted top lifter rollers and an overload protection system similar to those used on trailed and self-propelled machines. The Combi-1010E offers multiple adjustment options and automatic functions and is intended for small to medium-sized farms. It can be mounted on the tractor lower links or in an interaxle attachment frame. Working sequence: a share loosens soil below the root, conical pick-up rollers lift the haulm/carrot tops for extraction by the pick-up belt, a root-cleaner removes adhering soil, tops are cut at the base and ejected behind the machine, and carrots are loaded onto a trailer or truck by the cart elevator.

Standard equipment

• Rotatable conical pick-up rollers
• Overload protection (shear bolts) for the conical pick-up rollers
• Share system with mechanical stone protection (shear bolt)
• Height adjustment of share relative to main frame via spindle
• Top-lifting unit with pick-up belt length 374 in
• Pick-up belt, smooth type
• Speed adjustment of top lifter belt with cab-controlled reverse function
• One hydraulically driven rotating root-cleaner and one pair of rigid root-cleaners
• Speed adjustment of root cleaners manual via flow control valve
• Height adjustment of root cleaner manual with clamping screws in a sliding clamp bar
• Quick-release system for top lifter rollers for easy clamping adjustment and belt replacement
• Spring-loaded belt cleaners at rear deflection
• Mechanical belt tensioner
• Cutting unit driven by hydraulic motor
• Speed adjustment of cutting unit manual via flow control valve
• Cutting unit fixed to frame at rear by twisted flat iron
• Cross conveyor, width 630 mm, pitch 28 mm, rubber covered
• Speed adjustment of cross conveyor manual via flow control valve
• Cart elevator, width 630 mm, pitch 28 mm, rubber covered
• Elevator web, width 300 mm, pitch 28 mm, rubber covered, including flight slats
• Speed adjustment of cart elevator from the tractor cab, including Start-Stop function
• Machine hydraulics: own pump system and oil cooler
• Wheels 400 x 15.5
• Operator unit: i2 ASA-BUS touch-screen terminal including control box

Technical specifications

• Number of rows: 1
• PTO input speed: 540 rpm
• Top lifter (pick-up) belt length: 374 in
• Cross conveyor width: 630 mm, pitch 28 mm, rubber covered
• Cart elevator width: 630 mm, pitch 28 mm, rubber covered
• Elevator web width: 300 mm, pitch 28 mm, rubber covered, incl. flight slats
• Machine hydraulics: own pump system and oil cooler
• Wheels: 400 x 15.5
• Cutting unit: hydraulic motor driven, manual speed adjustment via flow control valve
• Operator unit: i2 ASA-BUS touch-screen terminal (control box)
