Water flow meter

ultrasonicirrigation

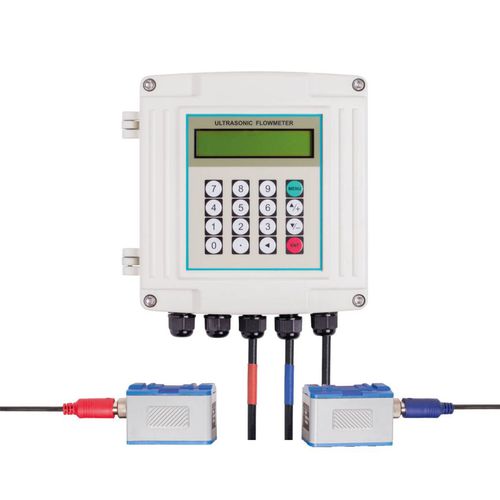

Ultrasonic technology flowmeter in its fixed and portable options. Alphanumeric LCD display that shows: instantaneous flow, positive, negative and net volume and fluid speed. Operating range: +/- 16 m/sec. Power supply: 90…260 Vac 50/60 Hz and 12…36 Vdc. Maximum consumption: 2 W. 4 – 20 mA outputs, pulses, frequency, RS-485 MODBUS and alarms. Accuracy: Higher than ±0.5%. Non-invasive transducers. The sensors of Hidroconta’s ultrasound meter are fitted onto the external surface of the pipe, so the flow rate does not have to be interrupted to install them. Alphanumeric LCD display. The ultrasound flow meter’s converter features a backlit alphanumeric LCD display with two lines and 20 digits. Information display Hidroconta’s flow meter can display the instantaneous flow rate, positive, negative and net volume and flow rate speed. Designed for all liquid and pipe types. It has been designed for use with ultrasound meters in all types of pipes, from the smallest ones with a 15 mm diameter to the largest ones with a 6,000 mm diameter. Applications Treatment of water, sludge and pumping process water. Oil, petroleum and chemical industries. Hydro-electric, cooling and firefighting stations. Extraction, food, pulp and paper and pharmaceutical and automotive industries.
