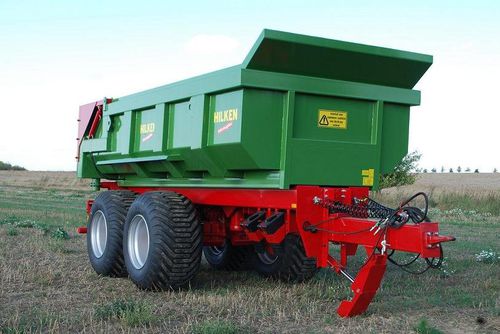

Dump trailer HI2245SMK
tandem axleagricultural22 ton

dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
Add to favorites
Compare this product


Characteristics

Construction
dump
Number of axles
tandem axle
Application
agricultural
Payload
22 ton
Load volume

12 m³ (423.8 ft³)

Loading case lenght

4,500 mm (177.2 in)

Loading case width

2,300 mm (90.6 in)

Loading case hight

1,000 mm (39.4 in)

Description

Logical development, excellent materials, stable components This is Q (quality). Not cheap, but inexpensive, modern and high- powered trailer .Hardox-trough .Square trough ( better unloading, on request with excavator), low center of gravity .Lower loading heights toward half-round-trough with same volume .High performance axle ea. 14 t at 105kmh, extra sealed break shafts, hugh bearing combination .heavy load multi-axle for truck-trailer, long lifetime and less subsequent costs characterize this axle in the roughest conditions .Tandem-aggregate oscillating from a large-volume tube, extremely stabil and all-terrain .Axle unit is bolted to the chassis .Chassis-and-Bridge frame made of closed tubular profile S355 .Hydraulic skid leg support with double acting cylinders, with tractor connection, with stopcock, also for uneven undergrounds well suitable .Large-volume telescopic cylinder guaranteed a large tilt-angle (over 60°) .Towing device height adjustable for K80 and towing eye suitable, sprung execution speed:40kmh/60kmh wall thickness:6 mm Hardox bottom:6mm Hardox axle:10-hole brake - cylinder:6 positions rocker bearing:Ø 110 mm flanged tyres:710/50 R26,5 traction device:K80 optional towing eye varnishing:2-component PUR multilayer hard lacquer TÜV certificate:40kmh others:freight charges on request
