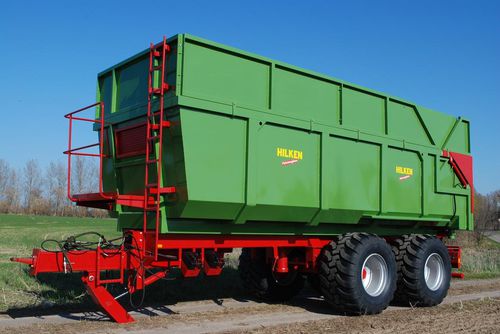

Tipping trailer HI24000MK XL
tandem axleagricultural24 ton

tipping trailer
tipping trailer
tipping trailer
Add to favorites
Compare this product


Characteristics

Construction
tipping
Number of axles
tandem axle
Application
agricultural
Payload
24 ton
Other characteristic
3-way, monocoque
Load volume

42 m³
(1,483.216 ft³)

Loading case lenght

6,500 mm, 6,700 mm
(255.9 in, 263.8 in)

Loading case width

2,400 mm
(94.5 in)

Loading case hight

1,500 mm
(59.1 in)

Description

Logical development, excellent materials, stable components. This is Q (quality). Not cheap, but inexpensive, modern and high- powered trailer .High performance axle ea.14 t at 105kmh, extra sealed break shafts, hugh bearing combination .heavy load multi-axle for truck-trailer, long lifetime and less subsequent costs characterize this axle in the roughest conditions .Chassis-and-Bridge-Frame made of closed tubular profile S355(ST52) .Hydraulic skid leg support with double acting cylinders, with tractor connection, with stopcock, also for uneven undergrounds well suitable .Large-volume telescopic cylinder guaranteed a large tilt-angle .Towing device height adjustable for K80 or towing eye suitable, sprung execution .Hydraulically opening rear wall with double acting cylinders .locking block for dosed opening and secure closing speed:40kmh/60kmh wall thickness:4 mm Hardox axle:10-hole sprung tandem assembly cylinder:6 positions rocker bearing:Ø 110 mm flanged tyres:560/60 R 22,5 traction device:K80 optional towing eye varnishing:2-component PUR multilayer hard lacquer TÜV certificate:40kmh others:ALB controller (automatic load-dependent brake) Grain slide with lever Light Connection for 2nd trailer
