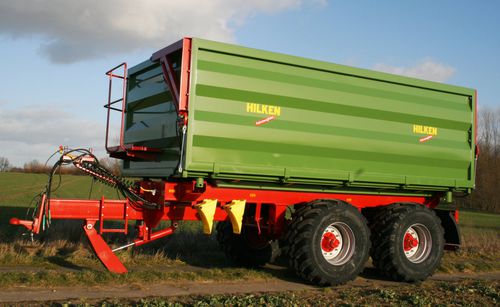

Tipping trailer HI22000TMK

tandem axleagricultural22 tons

Logical development, excellent materials, stable components. This is Q (quality). Not cheap, but inexpensive, modern and high- powered trailer .High performance axle ea.14 t at 105kmh, extra sealed break shafts, hugh bearing combination .heavy load multi-axle for truck-trailer, long lifetime and less subsequent costs characterize this axle in the roughest conditions .hutch,-side-or-rear-tilting .bridge as trough .rear tailgate approx.500mm, oscillating .hydraulic side flap optionally left or right .automatically operated central locking system .locking block for dosed opening and secure closing .Chassis-and-Bridge-Frame made of closed tubular profile S355(ST52) .Hydraulic skid leg support with double acting cylinders, with tractor connection, with stopcock, also for uneven undergrounds well suitable .Large-volume telescopic cylinder guaranteed a large tilt-angle .Towing device height adjustable for K80 and towing eye suitable, sprung execution speed:40kmh/60kmh axle:10-hole sprung tandem assembly cylinder:5 positions rocker bearing:Ø 110 mm flanged tyres:385/65R22,5 varnishing:2-component PUR multilayer hard lacquer TÜV certificate:40kmh others:ALB controller (automatic load-dependent brake) Parabolic spring 100mm wide Grain discharge rear H300xW400mm Grain slide with lever special equipment:rolling tarpaulin tyres 560/60R22,5 Chaff-top
