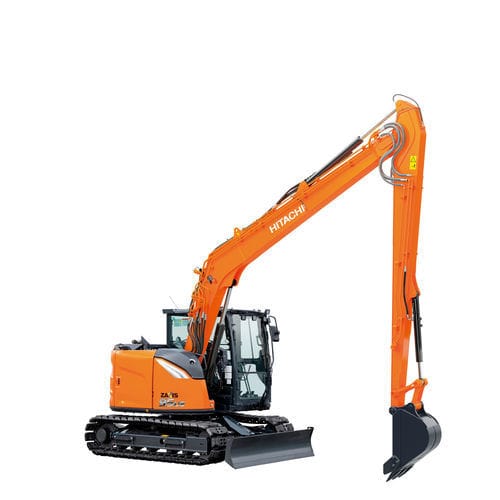

Compact excavator ZX95US-7 SLF

trackedhydraulic

Overview
The ZX95US-7 SLF is a compact excavator configured with a super long front to provide extended reach while maintaining machine stability. It is intended for tasks such as slope work, dredging and operations in confined or hard-to-reach areas where working at distance improves safety and access.

Key data

• Engine Rated Power (kW): 50.4 kW (ISO: 14396)
• Operating weight (kg): 9 040 - 9 520 kg
• Arm length: 4.04 m
• Available in: Europe

Engine & hydraulic system
Engine model: Yanmar 4TNV98CT
Engine emissions: EU Stage V
Engine type: 4-cycle water-cooled, common rail direct injection, turbocharged
Aspiration: Cooled EGR
Aftertreatment: Muffler Filter
No. of cylinders: 4
Pilot pump: 1 gear pump (max flow: 2 x 72 L/min and 1 x 56 L/min)

Hydraulic system
Main pump: 3 variable displacement axial piston pumps

Bucket and arm digging force
Bucket digging force (ISO): 57.5 kN
Arm crowd force (ISO): 20.3 kN

Weights and ground pressure
Shoe grouser type: Rubber / Grouser / Pad
Shoe width: 450 mm
Operating weight: 9 040 - 9 520 kg
Ground pressure: 43 - 45 kPa

Working ranges
Arm length: 4.04 m
Max. digging reach: 10 220 mm
Max. digging depth: 7 010 mm
Max. dumping height: 8 980 mm

Dimensions
Undercarriage length: 2 900 mm
Overall width of upperstructure: 2 260 mm
Overall height of cab: 2 530 mm

Top Features
Extended reach configuration for slope work and dredging
Compact overall footprint for operations on sensitive structures (bridges, canal edges)

Specifications (selection)
Max. Digging Reach: 10 220 mm

Technical specifications

• Model: ZX95US-7 SLF
• Engine model: Yanmar 4TNV98CT
• Engine rated power: 50.4 kW (ISO: 14396)
• Engine emissions: EU Stage V
• No. of cylinders: 4
• Engine aspiration: Cooled EGR
• Aftertreatment: Muffler Filter
• Pilot pump: 1 gear pump (max flow: 2 x 72 L/min and 1 x 56 L/min)
• Main pump: 3 variable displacement axial piston pumps
• Operating weight: 9 040 - 9 520 kg
• Shoe width: 450 mm
• Shoe grouser type: Rubber / Grouser / Pad
• Ground pressure: 43 - 45 kPa
• Arm length: 4.04 m
• Max. digging reach: 10 220 mm
• Max. digging depth: 7 010 mm
• Max. dumping height: 8 980 mm
• Bucket digging force (ISO): 57.5 kN
• Arm crowd force (ISO): 20.3 kN
• Undercarriage length: 2 900 mm
• Overall width of upperstructure: 2 260 mm
• Overall height of cab: 2 530 mm
• Region availability: Europe
