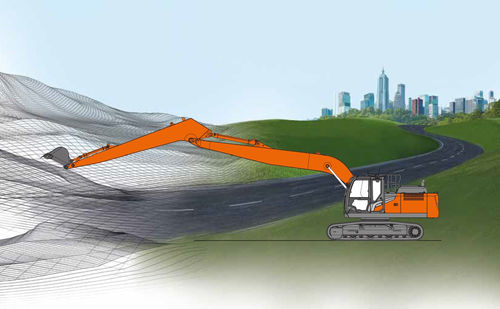

Tracked excavator ZX210-7 SLF

hydraulic

Overview
With an extended operating range, the super long reach excavator ZX210-7 SLF is designed for earthmoving in dredging, bank maintenance and slope finishing projects. Its low transport height simplifies logistics and on-site mobilisation.

Key data

• Engine Rated Power (kW): 128.4 kW (ISO14396)
• Operating weight (kg): 24 600 - 25 500 kg
• Arm length: 5.85 m
• Available in: Europe

Engine & hydraulic system
Engine Model: Isuzu 4HK1
Engine emissions: EU Stage V
Engine Type: 4-cycle water-cooled, common rail direct injection
Aspiration: Variable geometry turbocharger, intercooled, cooled EGR
Aftertreatment: DOC+CSF+SCR system
No. of cylinders: 4
Piston displacement: 5.193 L
Pilot pump: 1 gear pump (max flow 33.7 L/min)

Hydraulic system
Main pump: 3 variable displacement axial piston pumps

Bucket and arm digging force
Bucket digging force (ISO): 81 kN
Arm crowd force (ISO): 51 kN

Weights and ground pressure
Shoe grouser type: Triple
Shoe width options: G 600 / G 700 / G 800 / G 900
Operating weight: 24 600 - 25 500 kg
Ground pressure options: 51 kPa (0.52 kgf/cm2); 44 kPa (0.45 kgf/cm2); 39 kPa (0.40 kgf/cm2); 35 kPa (0.36 kgf/cm2)

Working ranges
Arm length: 5.85 m
Max. digging reach: 15 400 mm
Max. digging depth: 11 540 mm
Max. dumping height: 11 910 mm

Dimensions
Undercarriage length: 4 450 mm
Overall width of upperstructure: 2 700 mm
Overall height of cab: 2 950 mm

Top Features

• Engine Rated Power: 128.4 kW (ISO14396)
• Operating weight: 24 600 - 25 500 kg

Technical specifications

• Engine Model: Isuzu 4HK1
• Engine emissions: EU Stage V
• Engine Type: 4-cycle water-cooled, common rail direct injection
• Aspiration: Variable geometry turbocharged, intercooled, cooled EGR
• Aftertreatment: DOC+CSF+SCR system
• No. of cylinders: 4
• Piston displacement: 5.193 L
• Pilot pump: 1 gear pump
• Max oil flow pilot pump: 33.7 L/min
• Main pump: 3 variable displacement axial piston pumps
• Bucket digging force ISO: 81 kN
• Arm crowd force ISO: 51 kN
• Shoe grouser type: Triple
• Shoe width: G 600 / G 700 / G 800 / G 900
• Operating weight: 24 600 - 25 500 kg
• Ground pressure: 51 kPa; 44 kPa; 39 kPa; 35 kPa
• Arm length: 5.85 m
• Max. digging reach: 15 400 mm
• Max. digging depth: 11 540 mm
• Max. dumping height: 11 910 mm
• Undercarriage length: 4 450 mm
• Overall width of upperstructure: 2 700 mm
• Overall height of cab: 2 950 mm
• Available in: Europe
