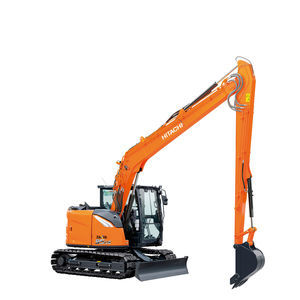

Tracked excavator ZX130-7 SLF

hydraulic

Overview

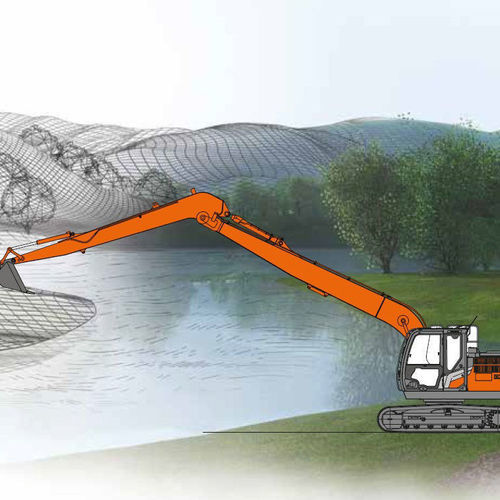

With an extended operating range, the ZX130-7 SLF long-reach excavator is designed for dredging, bank maintenance and slope finishing. Low transport height facilitates movements between sites.

Key information

• Engine rated power (kW): 74 kW (ISO14396)
• Operating weight (kg): 14 900 - 15 400 kg
• Available in: Europe

Engine & hydraulic system
Engine model: TOYOTA INDUSTRIES CORPORATION 1KDE
Engine emissions: EU Stage V
Engine type: 4‑cycle water‑cooled, common rail direct injection
Aspiration: Turbocharged, intercooled, cooled EGR
Aftertreatment: DOC+CSF system
No. of cylinders: 4
Piston displacement: 2.982 L
Pilot pump: 1 gear pump — max flow 33.6 L/min

Hydraulic system
Main pump: 2 variable displacement axial piston pumps

Bucket and arm digging force
Bucket digging force (ISO): 39 kN
Arm crowd force (ISO): 27 kN

Weights and ground pressure
Shoe grouser type: Triple
Shoe width: G 500 / G 600 / G 700
Operating weight: 14 900 - 15 400 kg
Ground pressure examples: Triple grouser 500 mm — 14 900 kg — 45 kPa (0.46 kgf/cm²); 600 mm — 15 200 kg — 38 kPa (0.39 kgf/cm²); 700 mm — 15 400 kg — 33 kPa (0.34 kgf/cm²)

Working ranges
Arm length: 5.3 m
Max. digging reach: 13 140 mm
Max. digging depth: 10 160 mm
Max. dumping height: 9 880 mm

Dimensions
Undercarriage length: 3 750 mm
Overall width of upperstructure: 2 460 mm
Overall height of cab: 2 790 mm

Top Features
Engine rated power (kW): 74 kW (ISO14396)
Operating weight (kg): 14 900 - 15 400 kg

Caractéristiques / spécifications techniques

• Model: ZX130-7 SLF
• Engine model: TOYOTA INDUSTRIES CORPORATION 1KDE
• Rated power: 74 kW (ISO14396)
• Engine emissions: EU Stage V
• Engine type: 4‑cycle water‑cooled, common rail direct injection
• Aspiration: Turbocharged, intercooled, cooled EGR
• Aftertreatment: DOC+CSF system
• Cylinders: 4
• Piston displacement: 2.982 L
• Pilot pump: 1 gear pump — max flow 33.6 L/min
• Main pump: 2 variable displacement axial piston pumps
• Bucket digging force (ISO): 39 kN
• Arm crowd force (ISO): 27 kN
• Operating weight: 14 900 - 15 400 kg
• Shoe type: Triple grouser (500 / 600 / 700 mm options)
• Ground pressure (examples): 500 mm — 45 kPa; 600 mm — 38 kPa; 700 mm — 33 kPa
• Arm length: 5.3 m
• Max digging reach: 13 140 mm
• Max digging depth: 10 160 mm
• Max dumping height: 9 880 mm
• Undercarriage length: 3 750 mm
• Overall width of upperstructure: 2 460 mm
• Overall height of cab: 2 790 mm
