Pig barn ISOTEK

calfpoultryinsulated

Overview

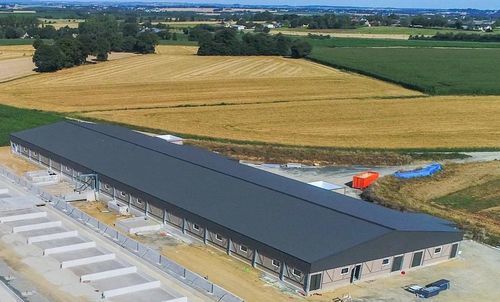

ISOTEK is a modular, multi-species livestock building concept designed for pigs, veal and poultry. It combines scalable design and recyclable materials to reduce energy use, extend service life and improve hygiene conditions.

Construction and materials
The structure is mounted on reinforced walled concrete (no concrete blocks for structural columns). A bolted-profile wire-mesh frame allows disassembly and modular extension. Exterior walls and roof are insulated with ISOTEK+ panels; internal barn dividers are recycled PVC panels used in industrial facilities.

ISOTEK wall

• Aluminium sheets (6/10ths) on both faces for mechanical strength and durability in aggressive environments

Insulation

• Continuous ISOTEK+ insulation eliminates thermal bridges and ensures homogeneous thermal performance
• Improved thermal envelope for controlled energy costs

Health & hygiene

• Full-height, non-porous PVC top panels suitable for food contact, reducing bacterial growth risk
• High fire resistance

Ventilation

• EXATOP ventilation system ensures uniform air distribution
• Individualized airflow control creates a micro-climate adapted to each barn unit year-round

Roof

• Architectural integration with the landscape
• 100% disassemblable and 100% recyclable

Product Details

• ISOTEK wall: aluminium sheets 6/10ths each side
• Bottom section: 27 mm PVC/polypropylene, 1.20 m high
• Top panel: full-height, non-porous PVC suitable for food contact
• Ventilation: EXATOP system
• Structure: bolted profiles, wire-mesh frame, disassemblable
• Mounting: reinforced walled concrete base (no concrete blocks for columns)
• Insulation: ISOTEK+ panels on exterior walls and roof
• Barn dividers: recycled PVC panels
• Design: modular, scalable and 100% recyclable

Technical specifications

• Suitable species: pigs, veal, poultry
• Wall composition: aluminium sheets with PVC/polypropylene panels
• Bottom PVC: 27 mm thickness; height 1.20 m
• Aluminium thickness: 6/10ths each side
• Top panel: full-height PVC, food-contact suitable, non-porous
• Ventilation: EXATOP system with individual air distribution
• Structure: bolted-profile wire-mesh frame, disassemblable
• Mounting base: reinforced walled concrete (no concrete blocks for columns)
• Insulation panel: ISOTEK+
• Barn dividers: recycled PVC panels
• Fire resistance: high
• Environmental: 100% disassemblable and 100% recyclable
