Pig barn BIO-TEK

with photovoltaic panel

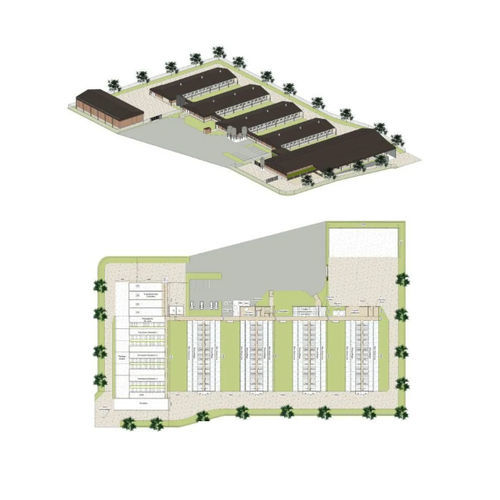

Overview The BIO-TEK building concept is designed for organic pig farming, providing freedom of movement and straw-bedded areas for all physiological stages. The layout includes an entrance airlock with corridor and junction, farrowing houses that comply with organic farming specifications, and outdoor runs accessible to piglets. The concept supports easier farm management, reduces disease transmission by avoiding mixing animals during stage changes, and can be scaled to any farm size while integrating with the landscape. Photovoltaic panels can be installed to improve energy self-sufficiency and reduce operating costs.

Advantages

• Mating stall with sows moving freely
• Gestation stall designed for maximum freedom
• Free movement for sows in farrowing stall with on-site weaning
• 42-day on-site weaning
• Automated straw distribution
• Dust removal from straw before use
• Possibility to treat the straw
• Option to install photovoltaic panels

Description

• Meets organic certification specifications
• Straw-bedded areas provided for all physiological stages
• Access to outdoor runs for piglets
• Designed to facilitate farm work and support animal health

Technical specifications

• Entrance airlock with corridor and junction
• Straw-bedded areas for all physiological stages
• Outdoor runs for piglets
• 4.50 m² per sow in mating/gestation
• 10 m² in farrowing with an uncovered exercise zone according to specifications
• 1 m² per piglet in weaning
• 2.3 m² per finishing pig
• 42-day on-site weaning
• Automated straw distribution with dust removal before stall use
• Possibility to treat the straw
• Option to install photovoltaic panels
