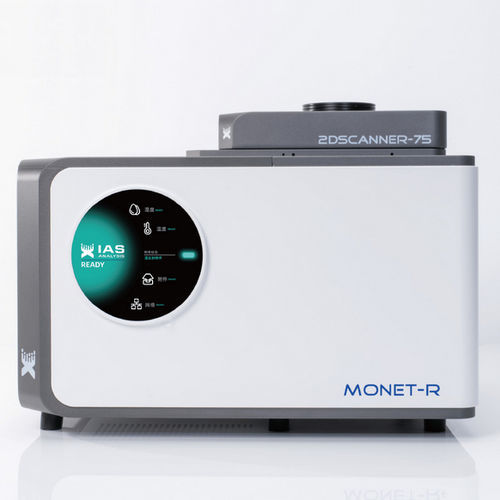

Grain analyzer MONET-R

animal feedoilprotein

Overview
The MONET-R FT-NIR analyzer is a portable Fourier transform near-infrared spectrometer designed for rapid quantitative and qualitative analysis across laboratory and production environments. Covering 833-2597 nm with an InGaAs detector and patented interferometer, it delivers reproducible spectra suitable for multicomponent testing and process control. Integrated software supports instrument control, one-click multi-parameter testing and model development for routine industrial use.

Product Features

• Full spectral coverage 833–2597 nm for key chemical bond information (N-H, S-H, C-H, C=O)
• Fast analysis: simultaneous multi-parameter detection in under 1 minute (adjustable)
• User-oriented software combining instrument control, data processing and modeling
• Integrating-sphere diffuse-reflection sampling with rotatable/translatable stage for representative spectra
• Long-life light source and pre-aligned consumables for quick field maintenance
• Built-in reference material for automatic calibration and wavelength monitoring
• Multiple sample cups and accessories to handle powders, liquids and solids

Parameter Standards

• Wavelength range: 833-2597 nm
• Instrument principle: Fourier Transform (FT)
• Detector: InGaAs detector
• Spectral resolution: 4 cm⁻¹
• Wavenumber accuracy: < 0.05 cm⁻¹
• Wavenumber repeatability: < 0.006 cm⁻¹
• Absorbance accuracy: < 0.1 %T
• Scanning speed: 1 minute (adjustable)
• Protection rating: IP54

Industry Applications

• Feed and animal nutrition analysis
• Grain, oilseed and milling quality control
• Breeding and seed evaluation
• Chemical process quality monitoring
• Laboratory and on-site industrial sample analysis

Development Reference Standards

• ASTM E1655-05 — Infrared multivariate quantitative analysis
• ASTM E168-06 — Techniques for infrared quantitative analysis
• ASTM E1790-04 — Near infrared qualitative analysis
• 39-00 — Near-Infrared Methods: Guidelines for model development and maintenance
• 39-10 — NIR method for protein in small grains
• 39-11 — NIR method for protein in wheat flour
• 39-20 — NIR method for protein and oil in soybeans
• 39-21 — NIR method for whole-grain soybean analysis
• 39-25 — NIR method for protein in whole-grain wheat
• 39-70A — NIR method for hardness in wheat
• ICC-159 — Determination of protein by NIR spectroscopy

Technical Specifications

• Wavelength range: 833-2597 nm
• Instrument principle: Fourier Transform (FT)
• Detector: InGaAs detector
• Spectral resolution: 4 cm⁻¹
• Wavenumber accuracy: < 0.05 cm⁻¹
• Wavenumber repeatability: < 0.006 cm⁻¹
• Absorbance accuracy: < 0.1 %T
• Scanning speed: 1 minute (adjustable)
• Protection rating: IP54
• Dimensions: L 405 mm × W 330 mm × H 290 mm
• Weight: 30 kg
• Power supply: AC 220V 50Hz
• Operating conditions: 5–35°C / <80% RH
• Warm-up time: none, ready at startup
