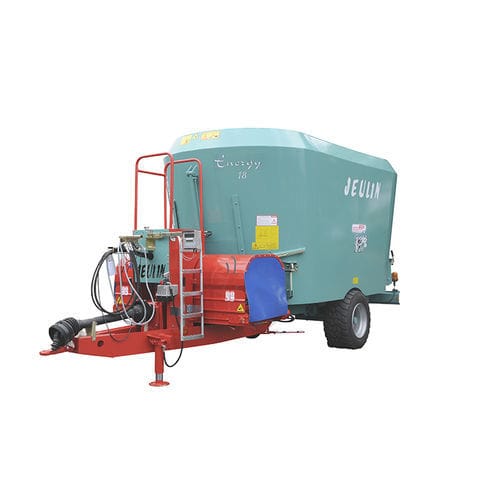

Vertical mixing wagon ENERGY NGF series

towedside discharge2-auger

Mixing – Dispensing Vertical conic mixing screw equipped with 7 blades with an adjustable scraper 540 rpm gear = 32 turn at the screw Conic circle with an anti-flood ring inserted in the vat Fiber hoop 2nd scraper on each screw Angle reverser reducer with oil bath (tank capacity 4l) 2 manual vertical contra-rotating blades Tangential unloading trap door front right hand side or rear left hand side Front left control ladder (or rear central if front conveyor) Conception – Safety Chassis integrated to the vat (narrow and low model) Weighing DG500, 3 points, 48 programs, 18 components with horn (2 points on the axle, 1 point on the linkiage) Safety casing Road traffic Parking brake and hydraulic brake Lighting in accordance to the Highway code Manual kickstand Linkage on piton Revolving light CE norms and DREAL homologation Transmission PTO transmission serie 8 with protection and safety bowl machine side Tractor equipment 1 plug 540 rpm and 1000 rpm 1 electric plug 12v/3 pins for weighing 1 electric plug 12v/7 pins for light 1 hydraulic distributor 1 DE for the trap door (Be carefull of the quantity if additional equipment) 1 linkage piton
