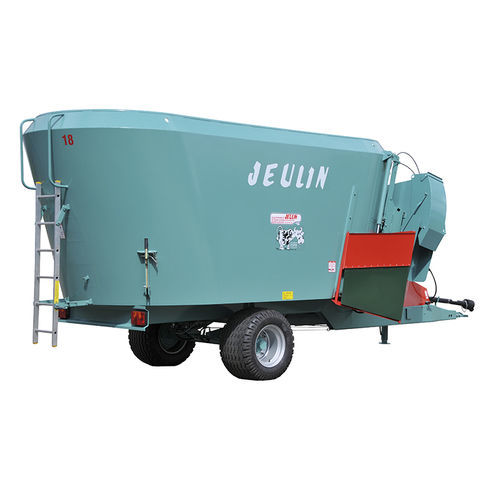

Vertical mixing wagon AEROMEL NGF

towedside discharge2-auger

Mixing – Dispensing Vertical conic mixing screw equipped with 7 blades and 1 adjustable scraper Conic circle with an anti-flood integrated in the vat Fiber circle 2 Gears gearbox 16/32 rpm (manual driving) mixing screw Angle reverser reducer with oil bath (tank 4l) 2 manual vertical contra-rotating blades Tangantial unloading trap door front right or rear left Control ladder Bedding Front bedder with a big blower 1600 mm Blower composed of 8 removable paddles Blower housing 320 mm width in anti-abrasive steel (Brinel 430 hb steel 120 kg) Blower trap door Bedding trap door opening by 2 outside cylinders Mechanical driving with free wheel and safety frictions Bedding and feeding hute lateral right hand side activated by 1 cylinder Contra-rotating blades in the chute 2 gears gearbox with manual control (dispensing 270 rpm – bedding 540 rpm) Conception – Safety Chassis integrated to the vat (narrow and low model) Weighing DG500, 4 points on independant chassis, 24 programs,18 components with horn Safety casing Control Electric control 3 functions with a mobile box in the tractor cab Road traffic Parking brake and hydrailic brake Lighting in accordance to the Highway code Manual kickstand Linkage on piton Revolving light CE norms and DREAL reception Transmission PTO transmission serie 8 with protection and safety bowl machine side Tractor equipment 1 plug 540 rpm and 1000 rpm 1 electric plug 12v/3 pins for weighing 1 electric plug 12v/7 pins for light 1 hydraulic distributor SE with direct return to the tank 1 linkage piton
