Wheel rake WR00 Series

Overview

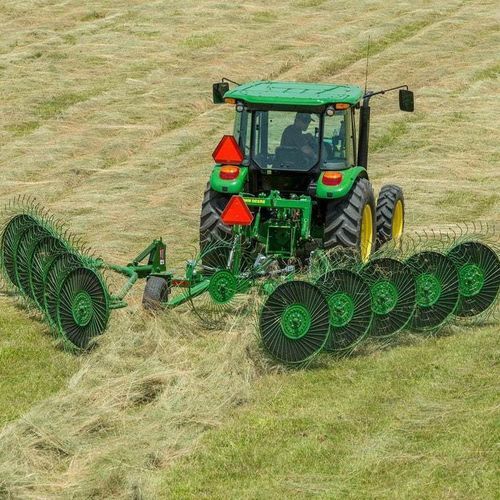

The WR00 Series carted wheel rakes are designed for efficient hay raking with a compact transport profile, fast field adjustments and an adjustable hitch to match a range of tractor drawbar heights.

Key features

• Compact design for reduced transport width
• Quick, tool‑free field adjustments
• Adjustable hitch compatible with various tractor drawbar heights
• Carted configuration with wide wheel base and high frame clearance for consistent ground contact on uneven terrain
• Durable moving components with larger 7 mm tines and grease zerks per wheel

Feature details

• Compact transport: Raking arms and wheels fold onto the cart to a minimum transport width of 2.5 m (8.2 ft). Hydraulic lockout valves and wing transport chains secure wings in transport.
• Carted design: 1.8 m (6 ft) wheel width maintains wheel contact; frame clearance of 50.8 cm (20 in) keeps hay clear of the cart frame.
• Wear life: Wheels use 7 mm (0.28 in) diameter tines. One grease zerk per wheel and additional zerks on the frame provide lubrication points for moving parts.
• Quick field adjustments: Two adjustment points (two‑point position pin and hole) set windrow and raking widths; adjustable dual‑spring rake arm suspension with three settings adapts to terrain and crop conditions.
• Adjustable hitch: Simple hitch adjustments enable compatibility with different tractor tire sizes and drawbar heights.

Specifications

• Transport width: 2.5 m (8.2 ft)
• Transport length: 5.3 m (17.5 ft)
• Transport height: 2.75 m (9.0 ft) — Note: transport heights can vary based on unit setup; dimensions are for reference only
• Frame clearance: 50.8 cm (20 in)
• Maximum raking width: 6.4 m (21 ft)
• Windrow width: Minimum 61 cm (24 in), Maximum 129.5 cm (51 in)
• Implement weight: 669 kg (1,475 lb)
• Shipping weight: 725 kg (1,599 lb)
• Rake wheels: Quantity — Ten; Diameter — 140 cm (55 in); Teeth per wheel — 40; Teeth diameter — 7 mm (0.27 in); Hubs — Tapered bearing
• Wing flex travel: Flex up — 19.7 cm (50 in); Flex down — 3.9 cm (10 in)
• Tractor compatibility: Required power — 22 kW (31 hp); SCV — 1 (one)
• Transport wheels (cart): Size — 205/70-15; Quantity — Two
• Safety: Lights — None; Marking — SMV; Hitch jack — Standard; Safety chain — Standard
• Set‑up time: Approximately eight hours (labor)
• Warranty: One year
