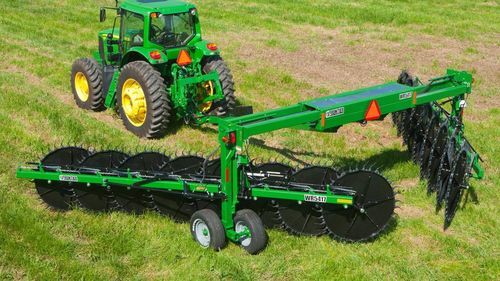

Wheel rake WR5417

Overview

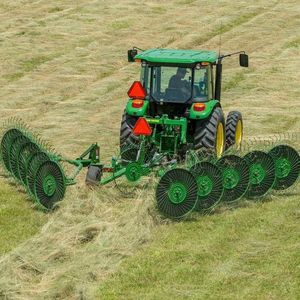

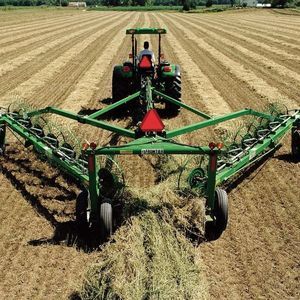

The WR54 Series overhead-frame wheel rakes are high-capacity wheel rakes designed for efficient raking of hay and forage. They feature adjustable rake beams, free-floating 152.4 cm (60 in) diameter wheels, and an in-cab master control for centralized operation. The design supports large working widths and simplified transport and storage.

Key features

• Adjustable raking beams: 0° to 8° to adapt to crop conditions (0° for dry crops; up to 8° for short, wet or matted crops).
• Free-floating rake wheels: 152.4 cm (60 in) diameter wheels float on individual dampening springs; optional bi-directional spring available; wheels can be lifted independently (left, right or both).
• Maximum raking width: up to 8.83 m (29 ft); rake wheel beams can be angled independently to permit one-sided raking.
• Master control system: single in-cab control to operate rake-wheel functions and beam adjustments.
• Rubber-mounted rake wheel teeth: 36 teeth per wheel (18 double tines), tooth diameter 0.7 cm (0.276 in); rubber mounting allows tilt adjustment of beams to match conditions.
• Tandem transport wheels: improve stability and maintain level operation over uneven ground.
• Transport locks: overhead frame and rake components can be secured with chains or locks for transport and storage.
• Hydraulic-adjustable windrow width: hydraulically adjustable up to 182.9 cm (72 in) using one hydraulic remote plus an electrical control box.
• Open-center kit availability: optional kit for tractors with open-center hydraulic systems.

Applications / Benefits

• High-capacity raking for hay and forage handling on large farms and contractors.
• Adjustable settings and hydraulic/electrical controls reduce operator time and improve raking consistency across varied crop conditions.
• Design facilitates smooth field operation, transport and compact storage.

Technical specifications

• Transport width: 3.75 m (12.33 ft)
• Transport length: 8.63 m (28.33 ft)
• Transport height: 2.26 m (7.42 ft)
• Raking width: min 5.02 m (16.5 ft) — max 8.83 m (29 ft)
• Windrow width: min 60.96 cm (24 in) — max 183.64 cm (72.3 in)
• Rake wheels: quantity 17; diameter 152.4 cm (60 in)
• Rake wheel teeth per wheel: 36 (18 double tines); tooth diameter 0.7 cm (0.276 in)
• Transport wheels (size/quantity): 9.5L-15 (24.0 x 38.1), four
• Implement weight (operating): 2,676 kg (5,900 lb)
• Shipping weight: 2,766 kg (6,100 lb)
• Set-up time (labor hours): 12
• Warranty time period: 1 year
• Tractor compatibility — minimum tractor size: 1,784 kg (3,933 lb); SCV: one double-acting (closed-center; open-center kit available)
