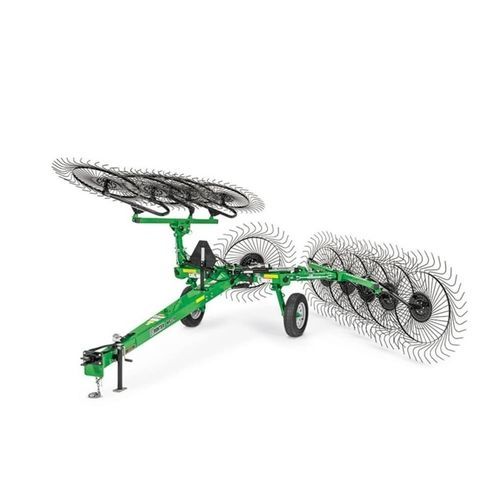

Wheel rake WR32 Series

Overview

• High-capacity design allows for high volume crop flow
• Large 60 in (152.4 cm) rake wheels minimize leaf loss
• Rake with one or both arms as needed
• Optional center kicker wheel to move unturned crop into the windrow

Designed for High-Capacity and a Uniform Finish
The WR32 Series carted wheel rake features 39 in (99.06 cm) underframe clearance and an 18 in (45.72 cm) gap between transport and raking wheels. This configuration permits high crop throughput through the machine, reducing plugging and improving field productivity. The wing geometry releases crop evenly when raised to produce a uniform windrow finish.

Larger Raking Wheels for Added Productivity
The 60 in (152.4 cm) diameter raking wheels have lower rotational speed at a given ground speed compared with smaller 55 in competitors. Fewer revolutions reduce leaf loss and produce cleaner windrows. Larger wheels also extend tine and wheel service life.

Quick and Easy Rake Adjustment Points
The WR32 Series provides three adjustment points to tailor windrow formation and material collection per bale across varying conditions.

• Rake Width Adjustment: Independently set each rake angle to match crop width and reduce wear while maintaining proper wheel rolling.
• Windrow Width Adjustments: Fine-tune windrow width to match baler intake; available on WR3210 and WR3212 models to reduce passes.
• Adjustable Rake Wheel Down Pressure: Change rod collar threads showing to increase or decrease down pressure for consistent contact on uneven ground and to avoid wheel digging.

Linkage System for Smooth Travel
Compression springs in the linkage absorb wheel shock, providing smooth ground following and consistent windrow formation.

Walking Tandem Axle Kit
The optional Walking Tandem Axle Kit improves stability and ride over rough terrain and during transport, enhancing windrow consistency. Offered as a factory-installed option.

Adjustable Hitch
Adjustable clevis hitch improves compatibility with a range of tractors and drawbar heights for large hay operations.

Center Kicker Wheel Kit (Field Installed)
The Center Kicker Wheel gathers unturned hay into the center of the rake to decrease drying time and increase material collected per pass. It includes a hydraulic shut-off valve for raise/lower control when hydraulics are active.

One-Sided Raking Valve Kit (Field Installed)
Enables single-arm raking; valves can be switched to either side without tools.

Turnbuckle Adjustment Kit (Field Installed)
Includes two turnbuckles to widen windrow raking width by 6 in per rake arm; available for WR3210 and WR3212.

Road Transport Lighting Kit (Field Installed)
Includes taillights and turn signals. Reflective decals, SMV/SIS signs and brackets are standard on all WR32 Series machines.

Specifications

• Model family: WR32 Series
• Commercial name: High-Capacity Carted Wheel Rakes
• Underframe clearance: 39 in (99.06 cm)
• Distance between transport and raking wheels: 18 in (45.72 cm)
• Raking wheel diameter: 60 in (152.4 cm)
• Adjustment points: three (rake angle, windrow width, rake wheel down pressure)
• Windrow width adjustment: available on WR3210 and WR3212
• Optional equipment: Center Kicker Wheel Kit, Walking Tandem Axle Kit, One-Sided Raking Valve Kit, Turnbuckle Adjustment Kit, Road Transport Lighting Kit
• Linkage: compression springs for shock absorption
