Mounted straw blower DUO COMPACT

beddingfor round balesfor square bales

Description

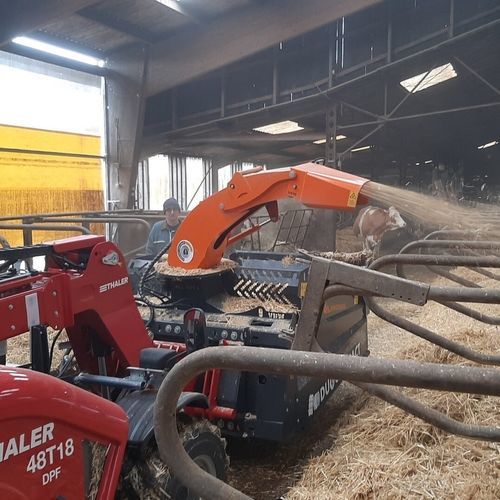

The DUO COMPACT straw spreader is designed for small articulated loaders (min. 50 hp), rigid compact loaders and loader tractors from 90 hp. It delivers continuous, adjustable straw distribution for cubicle bedding and bedded areas.

Features
Double-turbine spreader with a detangling roller and conveyor chain, lift tailgate and ejection via a 270° swivel chute. The conveyor chain combined with an aggressive detangling roller feeds straw continuously into the patented double turbines. The lower overall height compared with a single large turbine improves forward and lateral visibility during operation. Available in a larger POWER version (heavier and longer, 1140 kg empty).

Specification table
Overall width: 1.67 m
Overall length (travel direction): Approx. 2.30 m depending on hitch
Overall height: 1.87 m
Internal loading length: 2.20 m
Internal loading width: 1.40 m
Detangling roller diameter: 40 cm
Empty weight: 840 kg
Bale type: Round and square
Minimum required power: 50 hp
Required hydraulic flow: 60 l/min
Minimum carrier weight (loader, tractor ...): 3000 kg
Standard hitch: Euro
Other hitches available (option): MX, Thaler, Weideman, Schaeffer, Manitou, CAT, Giant, Kubota, Merlo, SMS, Bobcat ...
Standard hydraulic and electrical supply required: 1 double-acting (drain) + 1 free return + 1 x 25 A socket
Swivel chute: Included (270°)
Hydraulic tailgate: Included
Slat conveyor: Included
3-function magnetic electric joystick: Standard
Projection distance (depending on straw, flow and hydraulic pressure, lift height...): 0 to 14 m

Technical characteristics / specifications

• Machine type: Double-turbine straw spreader with detangling rotor
• Application: Designed for bedding of cubicles and bedded areas
• Overall dimensions: L 2.30 m (depending on hitch) x W 1.67 m x H 1.87 m
• Internal loading volume: L 2.20 m x W 1.40 m
• Detangling roller diameter: 40 cm
• Empty weight: 840 kg
• Minimum required power: 50 hp (recommended for small articulated loaders and loader tractors)
• Required hydraulic flow: 60 l/min
• Recommended minimum carrier weight: 3000 kg
• Standard hitch: Euro (other hitches available as option)
• Standard supply: 1 double-acting (drain) + 1 free return + 1 x 25 A socket
• Swivel chute: 270° (included)
• Ejection: Lift tailgate with swivel chute
• Slat conveyor and hydraulic door: included
• 3-function electric magnetic joystick: standard
• Projection distance: 0–14 m depending on straw type, flow and hydraulic pressure
