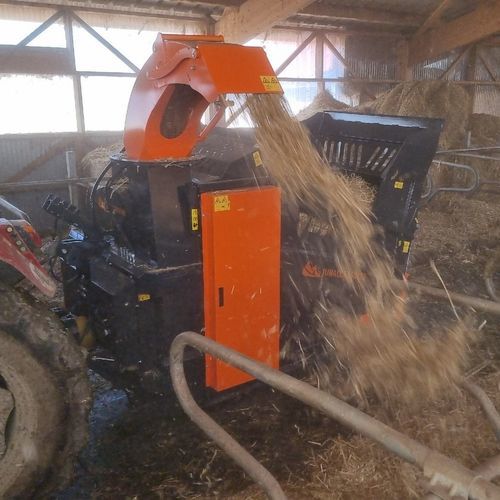

Mounted straw blower TURBINE MASTER

beddingfor round balesfor square bales

Description
The TURBINE MASTER straw blower is a mounted, 3‑point implement designed for tractors.

Main features
Straw bed blower equipped with a large turbine driven by the power take‑off (PTO), two hydraulically operated agitators, a slatted conveyor belt with variable speed adjustment and a hydraulic rear door. Material is discharged to the right. Available options: 45° chute or 270° rotating chute. The machine can project straw up to 20 m (depending on straw type and tractor power). Suitable for round and square bales. Recommended option: continuous‑flow hydraulic control.

Key benefits

• Very long projection range
• Compact when rear door is raised
• Variable speeds for turbine and conveyor

Detailed specification (table)
Overall width: 1.99 m
Overall length (rear door closed / open): 2.74 m / 4.23 m
Overall height: 2.40 m
Unladen weight: 1150 kg
Bale type: round or square
Minimum required power: 80 hp
Required hydraulic flow: 40 L/min
Minimum tractor weight: 4500 kg
Standard hitch: 3‑point Cat. 2
Standard control: manual control box at the front of the blower. Option: electric control box in cab
Standard power supply required: 1 PTO shaft + 1 x 25 A electrical socket + 1 double‑acting hydraulic (drain) + 1 free return
Projection distance (depends on straw, hydraulic flow/pressure, lift height...): 2 to 20 m (multiple turbine speeds depending on material)

Technical characteristics / specifications

• Overall width: 1.99 m
• Overall length (rear door closed / open): 2.74 m / 4.23 m
• Overall height: 2.40 m
• Unladen weight: 1150 kg
• Bale type: round or square
• Minimum required power: 80 hp
• Required hydraulic flow: 40 L/min
• Minimum tractor weight: 4500 kg
• Standard hitch: 3‑point Cat. 2
• Standard control: manual control box at the front (option: electric in‑cab control box)
• Power supply required: 1 PTO shaft, 1 x 25 A socket, 1 double‑acting hydraulic (drain) and 1 free return
• Projection distance: 2 to 20 m (depending on material and settings)
