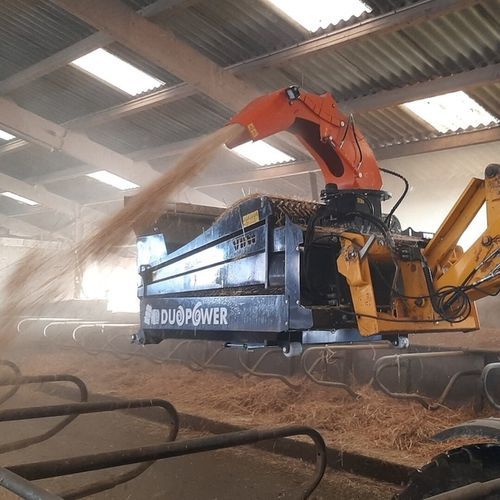

Mounted straw blower DUO POWER

beddingfor round balesfor square bales

Description
The DUO POWER straw blower is designed for bedding and straw distribution. Recommended for tractors over 120 hp and telehandlers with a minimum lift capacity of 3 tonnes; minimum required power 90 hp. Compatible with round and square bales and usable with a loader, tractor or telehandler. The patented double turbine reduces overall height while maintaining visibility of the material and the front of the machine when advancing.

Features
The machine is equipped with a patented double turbine, a bar-type conveyor to regulate feed, an unroller (detangler) roller, a hydraulic door and a 270° swivel chute. Magnetic 3-function electric joystick supplied. COMPACT version available (900 kg empty).

Key benefits:

• Forced feeding (chain + unroller + door) — effective on round bales
• Excellent forward visibility
• Enhanced operator safety

Detailed specification (table):
Overall width — 1.81 m
Overall length (direction of travel) — 2.88 m
Overall height — 2.01 m
Internal loading length — 3.10 m
Internal loading width — 1.50 m
Detangler roller diameter — 50 cm
Total empty weight — 1190 kg
Bale type — Round and square bales
Minimum required power — 90 hp
Hydraulic flow required — 90 l/min
Minimum carrier weight — 4500 kg
Standard hitch — Euro
Other possible hitches — MX, Thaler, Weideman, Schaeffer, Manitou, CAT, Giant, Kubota, Merlo, SMS, Bobcat (optional)
Standard hydraulic and electrical supply — 1 double-acting circuit (drain + free return + 1 electrical line 25 A)
Swivel chute — Included (270°)
Hydraulic door — Included
Bar conveyor — Included
Magnetic 3-function joystick — Standard
Projection distance (depends on straw, flow and hydraulic pressure, lift height...) — 0 to 14 m

Technical characteristics / Specifications:

• Overall width: 1.81 m
• Overall length (direction of travel): 2.88 m
• Overall height: 2.01 m
• Internal loading length: 3.10 m
• Internal loading width: 1.50 m
• Detangler roller diameter: 50 cm
• Total empty weight: 1190 kg
• Bale type: Round and square bales
• Minimum required power: 90 hp
• Hydraulic flow required: 90 l/min
• Minimum carrier weight: 4500 kg
• Standard hitch: Euro
• Other possible hitches: MX, Thaler, Weideman, Schaeffer, Manitou, CAT, Giant, Kubota, Merlo, SMS, Bobcat
• Hydraulic and electrical supply: 1 double-acting circuit (drain + free return + 1 electrical line 25 A)
• Swivel chute: Included (270°)
• Hydraulic door: Included
• Bar conveyor: Included
• Magnetic 3-function joystick: Standard
• Projection distance: 0 to 14 m (depending on straw, flow and hydraulic pressure, lift height...)
