Air compressor MOBILAIR M17

transportableportablemobile

Overview

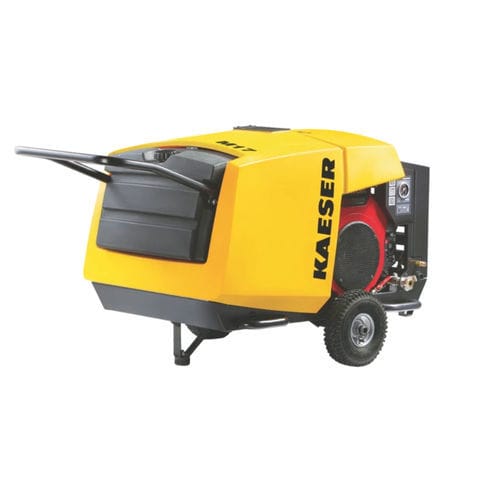

The MOBILAIR M17 is a compact, quiet portable screw compressor engineered for light construction and a range of on-site applications such as post driving, sprinkler blow-out, blowing fiber optic cable, monument engraving and duct cleaning. Available in two flow/pressure configurations, the unit is designed for easy handling on jobsites and for base mounting in vehicle beds.

Flow / Pressure Options

• 60 cfm up to 100 psig
• 35 cfm up to 217 psig

Mobility and Design
Equipped with a folding handle and oversized pneumatic tires for straightforward movement. Lightweight, compact construction facilitates transport and loading into vehicles. Four ergonomically designed hand grips allow manual lifting for loading onto transporters.

Operation and Construction
User-friendly controls simplify operation. Durable, low-noise performance is achieved through roto-molded polyethylene (PE) enclosures that provide noise attenuation and impact protection.

Optional Compressed Air Treatment
The M17 can be fitted with an external compressed air aftercooler. Latest-generation units are prepared ex-works for aftercooler connection and include fixed connections and power supply provisions to simplify installation.

Advantages

• Onsite in a snap: Lightweight, compact and easy to transport.
• Easy to operate: Intuitive, user-friendly controls.
• Durable and quiet operation: Roto-molded PE enclosure for noise and impact protection.

Optional Aftercooler — Ready‑equipped Features

• 12 V electrical connection to supply power for the aftercooler fan
• Connection for condensate return; separated condensate is evaporated via hot exhaust gases
• Support frame options: compressed air aftercooler (approx. 21.5 lb) or additional filter combination (approx. 30 lb) equipped with fixed connections for compressed air, fan power supply and condensate return

Applications

• Light construction
• Post driving
• Sprinkler blow-out
• Blowing fiber optic cable
• Monument engraving
• Duct cleaning

Technical specifications

• Model: MOBILAIR M17
• Flow / Pressure: 60 cfm @ up to 100 psig; 35 cfm @ up to 217 psig
• Enclosure: Roto-molded polyethylene (PE) for noise and impact protection
• Mobility features: folding handle, oversized pneumatic tires, base-mountable for truck beds
• Lifting: four ergonomically designed hand grips for manual loading
• Optional aftercooler: external aftercooler supported via dedicated frame; approx. 21.5 lb (aftercooler) or approx. 30 lb (filter combination)
• Aftercooler power: 12 V electrical connection provided for fan
• Condensate handling: connection for condensate return; condensate can be evaporated via hot exhaust gases
