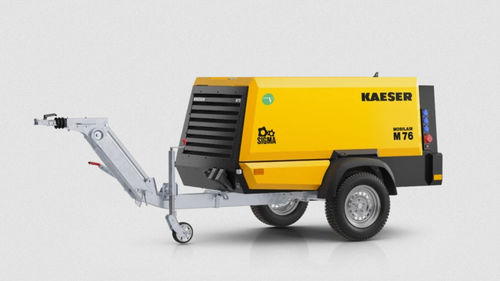

Air compressor MOBILAIR M76

mobiletransportableportable

Overview
The MOBILAIR M76 is engineered for endurance, delivering up to 270 cfm of compressed air for all-day productivity. It features a rugged, fuel-efficient Kubota 4-cylinder diesel engine integrated to provide up to 9 hours of continuous operation on a single, large fuel tank. The unit is designed for remote job sites and extended shifts, prioritizing reliability, uptime and easy maintenance.

Key features

• Flow up to 270 cfm
• Maximum pressures up to 200 psig
• Heavy-duty 4-cylinder Kubota diesel engine meeting Tier 4 Final EPA emissions standards
• Up to 9 hours continuous operation on a single fuel tank (extra-large 34 gallon fuel tank)

Your advantages

• Easy maintenance — Large, wide-opening enclosure doors; components are readily accessible
• User-friendly — Lifting eye and height-adjustable hitch with rigid tow bar for easy transport; large fuel tank for extended runtime

Standard features

• Pressures up to 200 psig
• Energy-efficient Sigma Profile airend produces more air with less horsepower
• Heavy-duty 4-cylinder Kubota diesel engine (Tier 4 Final)
• Sigma Control Smart electronic controller located in the eye-level, rear side instrument panel with protective metal cover
• Extra-large 34 gallon fuel tank for up to 9 continuous hours of operation
• High capacity cold start battery
• Anti-frost valve to maintain optimum operating temperature and prevent tool freeze-up
• Rigid tow bar with height adjustable hitch

Optional features

• Aftercooler package
• Skid mount
• Five year airend warranty

Variable pressure
The M76 supports KAESER pV technology via the Sigma Control Smart controller, allowing air pressure adjustment in 1.5 psi steps from 100 to 200 psi. The integrated controller also provides system monitoring and diagnostic capabilities.

Technical specifications

• Model: MOBILAIR M76
• Brand: KAESER
• Commercial name: MOBILAIR M76
• Flow: up to 270 cfm
• Maximum pressure: up to 200 psig (adjustable 100–200 psi in 1.5 psi steps via pV technology)
• Engine: Heavy-duty 4-cylinder Kubota diesel engine (Tier 4 Final EPA compliant)
• Fuel tank capacity: 34 gallons (up to 9 hours continuous operation)
• Airend: Sigma Profile airend (energy efficient)
• Controller: Sigma Control Smart (system monitoring and diagnosis)
• Cold start: High capacity cold start battery
• Anti-freeze: Anti-frost valve to prevent tool freeze-up
• Towing: Rigid tow bar with height-adjustable hitch and lifting eye
• Optional: Aftercooler package, skid mount, five year airend warranty
