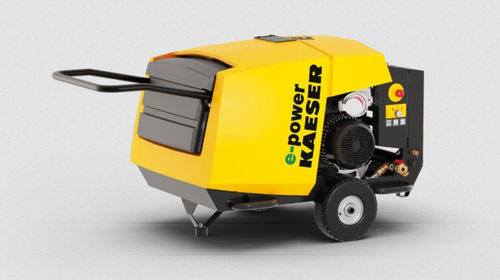

Air compressor MOBILAIR e-power

stationarymobiletransportable

Overview
The electric mobile construction compressors from KAESER perform where an electrical supply is available. The quiet electric drive of the e-power compressors allows operation in noise-sensitive and environmental protection zones. With an emissions-free drive, use in tunnels, excavations or inside buildings is possible.

MOBILAIR e-power – Applications and features
The electric construction compressors are compact, energy-efficient and designed for straightforward handling and low maintenance. e-power units are available with a choice of rigid or height-adjustable drawbar and with or without overrun brake, enabling mobile deployment. Units are also suitable for bridging during maintenance of industrial compressor stations.

Performance data

• Flow up to 24.7 m³/min
• Working pressure up to 14 bar

Your advantages

• Zero local emissions and low noise
• Suitable for environmental zones and indoor use
• Lower operating and maintenance costs

Indoor use
Thanks to the emissions-free electric drive, deployment in closed or noise-sensitive areas is possible. The product page includes supplementary media (video) illustrating typical indoor applications.

Electric compressors for large projects (e.g. MOBILAIR M250E / M255E)
Powerful stationary e-power models such as MOBILAIR M250E and M255E are designed for outdoor installation. Compact dimensions allow placement in confined spaces and transport by truck; two units can be transported in parallel on a single load bed. A robust skid protects the body and facilitates moving or dragging the unit on site. Stationary models feature star-delta starting and are rated for an ambient temperature range of -10 °C to +40 °C; an optional low-temperature version with internal heater is available for down to -25 °C. Units are delivered ready for connection with a load-disconnect switch; connection can be via terminal box or POWERLOCK connector. An optional modem enables telematics/Industry 4.0 connectivity for monitoring operating hours, location and unit condition and supports maintenance planning and remote diagnostics.

Simple, intuitive operation
Control of the e-power units is via an operator panel with six keys (start/stop, pressure setting etc.) and a color display that shows faults and operating status and indicates the countdown to the next service. The panel is protected by a lockable metal cover. With the optional DUAL control, switch-on/off and start-stop automation can be configured easily.

Built-in compressed air treatment
Aftercoolers are fitted as standard and mounted with a slope so condensate drains after shutdown to prevent frost damage. Condensate discharged during short-term operation is collected in a built-in canister; for extended use, external discharge is provided (e.g. connection to an oil-water separator possible).

Time and cost savings
The electric drive eliminates engine oil, fuel and oil filter changes, resulting in longer service intervals and less downtime. Compared with diesel-driven construction compressors, energy cost savings are possible (the product page indicates potential savings of up to approx. 25%).

Media and additional information
Technical data in the form of brochures and series overviews are available on the product page, together with illustrative images and a video showing application scenarios.

Characteristics / specifications

• Series / designation: MOBILAIR e-power
• Available series / example models: M10E, M13E, M17, M27E / M31E / M50E, M50E SFC, M250E / M255E
• Flow: up to 24.7 m³/min (depending on model)
• Working pressure: up to 14 bar (depending on model)
• Drive: electric drive, emissions-free
• Starting method for stationary models: star-delta starting
• Operating temperature range: standard -10 °C to +40 °C; optional low-temperature version down to -25 °C
• Control: SIGMA CONTROL SMART (color display, six keys, DUAL control optional)
• Compressed air treatment: standard aftercooler, condensate canister / option for external discharge to oil-water separation
• Mobility: chassis with rigid or height-adjustable drawbar, with/without overrun brake; truck-transportable
• Connection options: terminal box or POWERLOCK connector (optional)
• Optional equipment: modem/telematics for connection to Plant Control Center / remote diagnostics
• Advantages: emissions-free, low noise, reduced operating and maintenance effort
