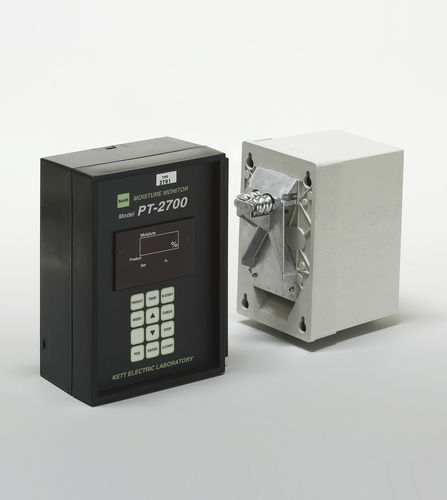

Grain dryer moisture sensor PT-2700 series

for grainsricedigital

PRODUCT OVERVIEW
The PT-2700 can be mounted into a paddy dryer or measuring scale at a rice unloading station, enabling continuous moisture measurement. When mounted into a dryer, it is possible to automatically stop the dryer while taking moisture measurements.

SPECIFICATIONS

Applications and Measurement Range:
- PT-2751
Paddy: 10-35%
- PT-2752
Paddy: 10-35%
Wheat: 10-40%
Barley: 10-40%
Brown Rice: 10-20%
Milled Rice: 10-17%

Measuring principle:
Electrical resistance (single grain)

Measured variable:
Moisture

Minimal display digit:
0.1% (moisture)

Measurement precision:
With respect to drying method (105 degrees C, 5g 5hr, crushed),
1-sigma: 0.5% or less, at moisture of 20% or less

Display:
7 segment LED

External output:
RS-232C

Operating temperature and humidity ranges:
0 to 50 degrees C (Must be free of condensation risk)

Power supply:
AC100 to 240 V (50/60 Hz)

Power consumption:
Max 120 W

Fuse:
250 V 2 A

Relay:
Maximum allowable current: 5A
Maximum switching voltage: 250 VAC

Dimensions and weight:
170(W) x 110(D) x 248(H) mm, 1.2kg

Accessories:
Moisture sensor (PU-356), Connecting cable with temperature sensor, Metal fittings, Operating manual
