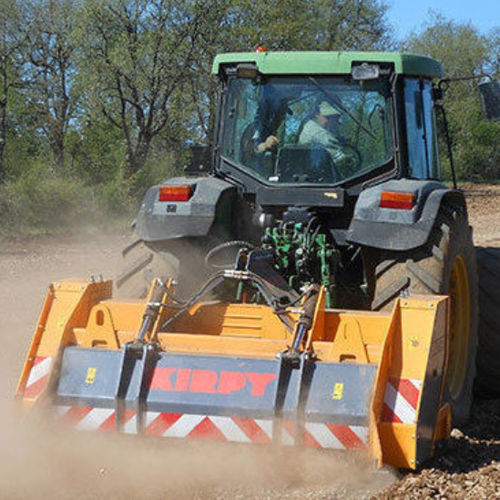

Stone crusher with hydraulic adjustment BPN series

forestryfor tractors

Fixed hammers

• Carbide hammers as standard
• Rear door with hydraulic opening
• Free-wheel clutch as standard
• Dual drive

Key features of the KIRPY BPN

• Designed to process stones and forest brush with carbide hammers
• Helical rotor for reduced power demand
• Hydraulic rear door for discharge control and access
• Interchangeable interior casing to extend service life
• High-quality steel construction and components
• Low operating costs
• Optional equipment: branch mulcher and automatic central lubrication system
• Interchangeable wear pads

Technical drawing (components)

• 1 — Rotor
• 2 — Transmission
• 3 — Coupling
• 4 — Anvil
• 5 — Hammers
• 6 — Hydraulic expansion flap

Technical drawing (table)
Type | Number of hammers | Number of belts | PTO speed (rpm) | Working width (m) | Power (HP) | Weight (kg)
BPN 200 | 22 | 1×6 – XPB | 540 or 1000 | 2.00 | 90-110 | 1900
BPN 250/3 | 34 | 2×6 – XPB | 1000 | 2.50 | 110-130 | 2600
BPN 300 | 42 | 2×6 - XPB | 1000 | 3.00 | 150-220 | 3120

All of the stone crushers come equipped with a transmission (specify the size and number of tractor side splines).
