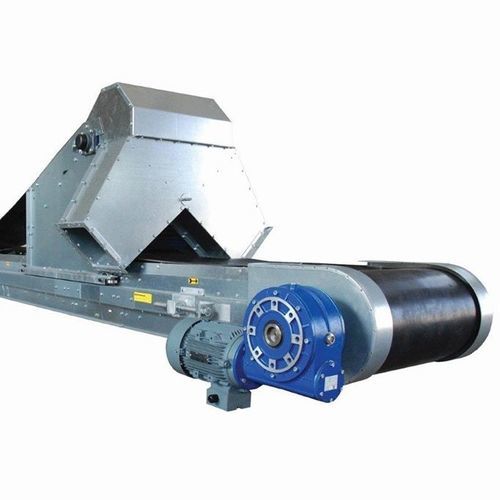

Grain conveyor BCB series

beltinclinedwith scraper

Product overview
The BCB belt conveyors provide a gentle, self-cleaning horizontal conveying solution for grain and similar crops where low power consumption, cleanliness and flexibility are required. Equipped with a V-shaped rubber belt, the BCB series handles grain, rapeseed and seeds with minimal impact on kernels and reduced contamination risk.

Capacity and application
Conveying capacity ranges from 60–80 t/h. The BCB series is intended for horizontal and slightly inclined conveying (up to 15°) and can achieve the stated capacity over distances up to 100 m; capacity may decrease with incline. The self-cleaning belt makes the unit suitable for agricultural environments demanding hygiene and low contamination.

Benefits

• Modular design: Interchangeable standard components for flexible grain handling layouts.
• Low energy consumption: Energy-efficient operation for reduced operating costs.
• Self-cleaning belt: Minimizes spillage and contamination, simplifying maintenance.
• Outdoor durability: Galvanized options available for outdoor installations and exposure to weather.
• Versatile conveying: Supports one-way or two-way conveying for operational flexibility.
• Customizable discharge points: Discharge positions can be arranged along the conveyor length.

Optional accessories for enhanced functionality

• Movable discharge unit: Adjustable along the conveyor for discharge to one or both sides.
• Inlet feeder: Integrable feeder running on the belt for controlled material input.
• Cover and dust guard: Optional cover and dust guard beneath the belt to protect product and equipment from weather and dust.
• Speed sensor: Monitors belt speed and issues alarms for preventive servicing.
• Multiple intakes: Allows several intake points on a single conveyor belt.
• Belt scraper: Keeps the return side clean and prevents material buildup and spillage.

Applications
The BCB series is suitable for horizontal or slightly inclined grain handling in grain storage facilities, seed processing plants and general agricultural operations where cleanliness, efficiency and flexibility are required. Its self-cleaning and modular features support reduced maintenance and sustained throughput.

Characteristics / Technical specifications

• Model series: BCB
• Belt type: V-shaped rubber belt
• Conveying capacity: 60–80 t/h
• Maximum capacity: up to 80 t/h (depending on configuration and distance)
• Maximum incline: up to 15°
• Maximum conveying distance: up to 100 m (capacity may decrease with incline)
• Suitable materials: grain, rapeseed, seeds and similar crops
• Design features: self-cleaning belt, modular components, galvanized options for outdoor installation
• Conveying options: one-way or two-way; customizable discharge points along the length
• Optional accessories: movable discharge unit, inlet feeder, cover and dust guard, speed sensor, multiple intakes, belt scraper
• Energy consumption: designed for low power consumption / energy-efficient operation
• Maintenance: minimal due to self-cleaning design
