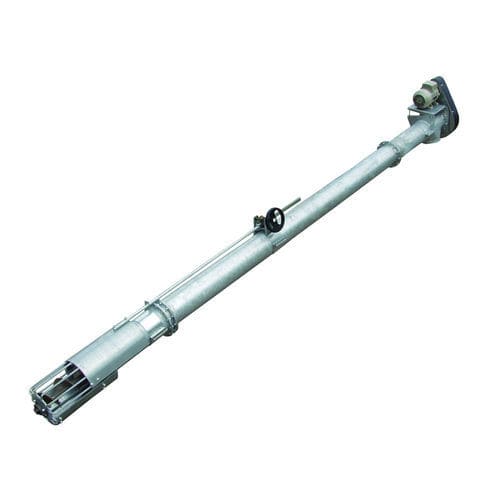

Grain sweep auger DG series

tubularmodular

Overview
Kongskilde’s DGA and DGS tube augers provide a versatile, economical solution for conveying grain and other granular materials. Designed to operate at any angle from horizontal to vertical, these augers are suitable for agricultural and industrial installations. Options include belt transmission or gear drive, modular components and inlet capacity control to optimise material flow.

How tube augers work
Tube augers move material using a rotating helical screw enclosed within a tube. This mechanism enables elevation or horizontal transfer with controlled flow and minimal spillage. Choice of belt or gear drive and inlet accessories improve adaptability and throughput.

Benefits of Kongskilde tube augers

• Efficient conveying: capacities up to 90 t/h for high throughput.
• Adaptable installations: operate effectively from horizontal to vertical for flexible layouts.
• Corrosion-resistant surfaces: galvanized steel suitable for indoor and outdoor use.
• Modular design: standard components and connector options for customised configurations.

Features of DGS grain augers

• Two models: DGS 205 and DGS 254.
• DGS 205 — available with belt transmission or gear drive.
• DGS 254 — available with gear drive.
• Capacities: up to 60 t/h and up to 90 t/h (horizontal conveying).
• Galvanized surfaces suitable for outdoor installation.
• Modular standard components.
• Capacity control on the inlet.
• Range of connectors and hoppers available.
• Maximum conveying distance: up to 11.8 m.

Features of DGA grain augers

• Models: DGA 102, DGA 127 and DGA 152.
• All DGA models with belt drive and motor mounted at auger outlet.
• Capacity: up to 40 t/h (horizontal conveying).
• Inlet capacity control and safety grid.
• Maximum conveying distance: up to 12.5 m.

Applications
Kongskilde DGA and DGS tube augers are suited to a wide range of material-handling tasks: on-farm grain handling, filling and emptying silos, truck loading/unloading and integration into modular conveying systems where flexibility, low maintenance and manoeuvrability are required.

Technical specifications

• Model series: DGA (DGA 102 / 127 / 152) and DGS (DGS 205 / 254).
• Maximum horizontal conveying capacity: up to 90 t/h (model-dependent).
• DGA capacity: up to 40 t/h (horizontal conveying).
• DGS capacities: up to 60 t/h and up to 90 t/h (depending on model and configuration).
• Drive options: belt transmission (DGA, DGS 205) and gear drive (DGS 205, DGS 254).
• Motor position: motor mounted at auger outlet (DGA models).
• Material / surface: galvanized steel for outdoor suitability.
• Inlet features: capacity control (DGS); capacity control and safety grid (DGA).
• Conveying distance: DGS up to 11.8 m; DGA up to 12.5 m.
• Modularity: modular standard components and range of connectors and hoppers available.
• Suitable for conveying grain and granular materials at any orientation (horizontal to vertical).
