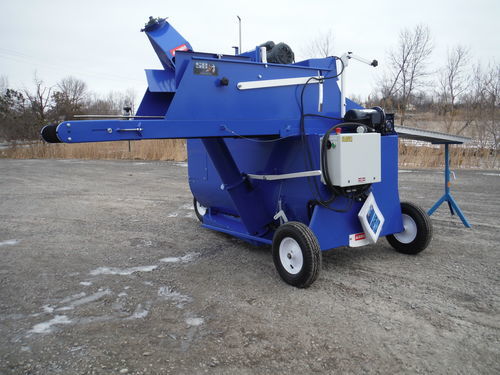

Semi-automatic tray filler SB 01

Overview
The SB01 is a compact, multi-function greenhouse and nursery machine for filling pots, plug trays and small bags. It breaks compressed bales, mixes media and allows addition of water and fertilizer. The machine features a simple, even compaction system and a brush that cleans the container rim while returning excess media to the hopper. The auger outlet can be rotated to fill larger pots, root balls, small trailers or hoppers. The unit is mounted on 16" wheels and includes a tow bar for mobility.

Production

• Capacity: one cubic yard or 3 compressed bales of 3.8 cu ft each
• Accepts containers up to 18" (45 cm) wide x 12" (30 cm) high
• Filling output: up to 1,000 containers per batch
• Mixes media and/or breaks bales in less than 2 minutes per batch
• Compatible media: peat moss, light soil; can add water, fertilizer and small bark

Power

• 220 V single phase, 60 Hz
• 1 x 5 HP motor — 23.0 A (mixer, bale breaker, auger)
• 1 x 1/3 HP motor — 3.3 A (brush)
• 1 x 1/2 HP motor, DC variable speed — 2.5 A (conveyor filling)
• Total listed: 28.8 A
• Different power configurations available as options

Dimensions

• Working: 86" (2.18 m) L x 98" (2.5 m) W x 72" (1.8 m) H
• Transport/storage: 86" (2.18 m) L x 56" (1.42 m) W x 72" (1.8 m) H
• Loading height: 43" (1.1 m)
• Weight: 1,200 lb (544 kg)
• Mobility: 16" wheels and tow bar

Options

• SB20 bale hoist
• Vibrating conveyor for plug cell trays to improve compaction
• Alternative power options

Technical specifications

• Model: SB01
• Type: Flat filler / Pot filler / Bale breaker / Mixer / Small bag filler
• Capacity per batch: 1 cubic yard (or 3 compressed bales of 3.8 cu ft)
• Max container size: 18" (45 cm) W x 12" (30 cm) H
• Output: up to 1,000 containers per batch (mix/break in under 2 minutes)
• Compatible media: peat moss, light soil, small bark; water and fertilizer can be added
• Main motor: 5 HP (23.0 A) — mixer, bale breaker, auger
• Brush motor: 1/3 HP (3.3 A)
• Conveyor filling motor: 1/2 HP DC variable speed (2.5 A)
• Total current draw listed: 28.8 A
• Electrical: 220 V single phase, 60 Hz (other power options available)
• Working dimensions: 86" L x 98" W x 72" H (2.18 m x 2.5 m x 1.8 m)
• Transport/storage dimensions: 86" L x 56" W x 72" H (2.18 m x 1.42 m x 1.8 m)
• Loading height: 43" (1.1 m)
• Weight: 1,200 lb (544 kg)
• Mobility: 16" wheels and tow bar
• Options: SB20 bale hoist, vibrating conveyor, alternate power choices
