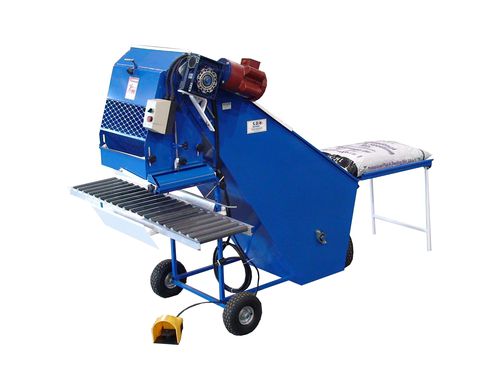

Semi-automatic pot filling machine SB05

for wood barkwater

Product overview
The SB05 is a soil mixer, bale breaker and semi-automatic pot filler designed to minimize damage to soil fibres. The low-loading table simplifies handling and an adjustable filling system accepts containers up to 16 in (40 cm) high.

Production

• Capacity: 0.70 cubic yard (approx. 2 bales of 3.8 cu ft)
• Mixes substrate in under 2 minutes per batch
• Compatible with soil and peat moss; additives such as fertilizer, water or bark can be incorporated
• Removable conveyor for filling wheelbarrows, potting tables or larger containers

Power

• 120 V AC, single phase, 60 Hz
• Motor: 1.5 HP AC, 17.0 A

Dimensions

• Working: 75.5 in x 60 in x 67 in (1.9 m x 1.52 m x 1.7 m)
• Storage/Transport: 72 in x 36 in x 67 in (1.83 m x 0.91 m x 1.7 m)
• Weight: 350 lb (158 kg)

Technical specifications

• Model: SB05
• Capacity: 0.70 cubic yard
• Bale: 2 bales of 3.8 cu ft
• Mix time: less than 2 minutes per batch
• Max fill height: 16 in (40 cm), adjustable filling system
• Compatible materials: soil, peat moss; can add fertilizer, water, bark
• Includes removable conveyor for wheelbarrow, potting tables or larger containers
• Power supply: 120 V AC, single phase, 60 Hz
• Motor: 1.5 HP AC, 17.0 A
• Working dimensions: 75.5 in x 60 in x 67 in (1.9 m x 1.52 m x 1.7 m)
• Transport dimensions: 72 in x 36 in x 67 in (1.83 m x 0.91 m x 1.7 m)
• Weight: 350 lb (158 kg)
