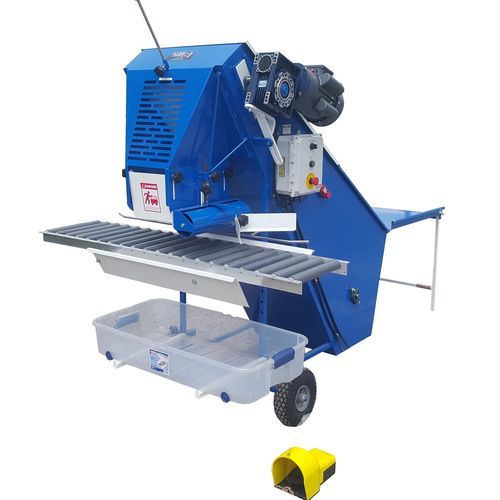

Big bale breaker with dispensing SB05

for wood barkwith storagepeat

Description
The SB05 is a mixer and bale breaker for potting and growing-media operations. It minimizes fiber damage while enabling fast, repeatable mixing and filling. Low loading height and a semi-automatic adjustable filling system simplify handling across a range of container sizes.

PRODUCTION

• Capacity: 0.70 yd³ (≈0.53 m³), or 2 compressed bales of 3.8 ft³.
• Mixes and breaks growing-media bales in under 2 minutes per load.
• Compatible with various media and peat moss; additives such as fertilizer, water or bark can be incorporated.
• Adjustable filling system for containers 1" to 16" high. Removable conveyor to fill wheelbarrows, tables or large containers.

ELECTRICAL

• 120 volts single-phase, 60 Hz.
• Motor: 1.5 HP AC, 17.0 A.

DIMENSIONS
Operational: 75.5" (1.9 m) x 60" (1.52 m) x 67" (1.7 m)
Storage: 72" (1.83 m) x 36" (0.91 m) x 67" (1.7 m)
Weight: 350 lb (158 kg)

FEATURES / TECHNICAL SPECIFICATIONS

• Model: SB05
• Functions: mixer, bale breaker, semi-automatic potting/filling
• Capacity: 0.70 yd³ (or 2 compressed bales of 3.8 ft³)
• Processing time: < 2 minutes per load
• Filling system: semi-automatic, adjustable 1" to 16" height
• Conveyor: removable (allows filling wheelbarrow, table or large containers)
• Power supply: 120 V, single-phase, 60 Hz
• Motor: 1.5 HP AC, 17.0 A
• Operational dimensions: 75.5" x 60" x 67" (1.9 m x 1.52 m x 1.7 m)
• Storage dimensions: 72" x 36" x 67" (1.83 m x 0.91 m x 1.7 m)
• Weight: 350 lb (158 kg)
