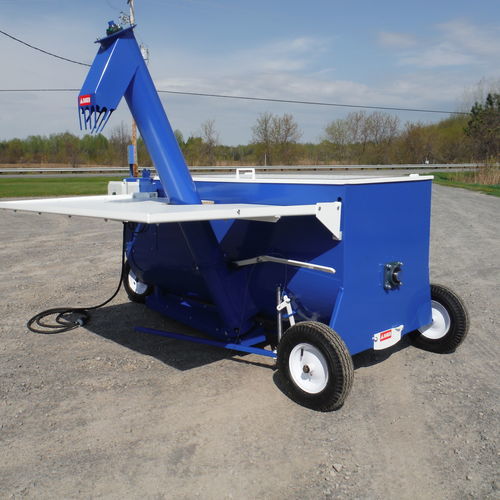

Horizontal mixing wagon SB02

towedside dischargesingle-auger

Product description
Designed for nursery production, the SB02 is a mixer and bale breaker with a semi-automatic filling system for incorporating bulbs, trees and roots into growing media. The unit features a low loading height, an auger with foot pedal for controlled discharge, 16" pneumatic wheels and a tow bar for mobility. A bag-filling attachment can be fitted.

PRODUCTION

• Capacity: 1 cubic yard (or 3 compressed bales of 3.8 cu ft)
• Mixes and/or breaks a bale in under 1 minute per batch
• Compatible with peat moss and light soils; accepts water, fertilizer, small bark and similar additives

POWER

• 220 V single phase, 60 Hz
• Motor: 1 × 5 HP (23.0 A) driving mixer and auger; alternative power configurations available

DIMENSIONS

• Working position (L × W × H): 86" (2.18 m) × 98" (2.5 m) × 72" (1.8 m)
• Transport/storage (L × W × H): 86" (2.18 m) × 56" (1.42 m) × 72" (1.8 m)
• Loading height: 43" (1.1 m)
• Weight: 700 lb (317 kg)
• Mobility: 16" pneumatic wheels and tow bar

OPTIONS

• SB 20 bale hoist
• Alternative power configurations
• Bag holding rods for bag filling

ADDITIONAL FEATURES

• Auger and foot pedal enable versatile filling or feeding another flat filler
• Bale breaking and mixing designed to minimise damage to substrate fibres
• Simple bag-filling attachment available for direct bag filling

TECHNICAL SPECIFICATIONS

• Model: SB02
• Application: Nursery production; semi-automatic filling of bulbs, trees and roots
• Functionality: Mixer and bale breaker with auger and foot pedal; can feed a separate flat filler
• Capacity: 1 cubic yard (or 3 compressed bales of 3.8 cu ft)
• Cycle time: Mix/break batch in less than 1 minute
• Compatible materials: Peat moss, light soil, water, fertilizer, small bark
• Power supply: 220 V single phase, 60 Hz
• Motor: 1 × 5 HP (23.0 A) for mixer and auger
• Wheels: 16" pneumatic wheels
• Mobility: Tow bar for easy moving
• Loading height: 43" (1.1 m)
• Working dimensions (L × W × H): 86" × 98" × 72" (2.18 m × 2.5 m × 1.8 m)
• Transport dimensions (L × W × H): 86" × 56" × 72" (2.18 m × 1.42 m × 1.8 m)
• Weight: 700 lb (317 kg)
• Optional accessories: SB 20 bale hoist, alternative power options, bag holding rods
