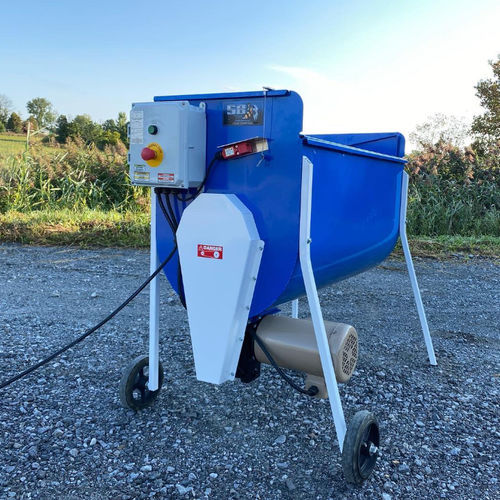

Wood bark big bale breaker SB09

peatfor soilwith mixer

Product overview
For smaller-scale substrate production the SB09 is a mixer and bale breaker designed to minimize damage to peat moss fibres. It mixes soil, peat moss, fertilizer and water to produce a homogeneous mixture in under 2 minutes per batch. The unit fills containers through a side door and features a low loading height for ergonomic loading.

Production

• Capacity: 1.25 compressed bales (3.8 cu ft / ≈107 L) per cycle
• Mixing and bale breaking in less than 2 minutes per batch
• Suitable for peat moss and light soils; allows addition of water, fertilizer, bark, etc.

Power

• 120 V single-phase, 60 Hz
• Motor: 1 x 1.5 HP (16.8 A)

Dimensions

• Storing/transport position: 52-1/2" (133 cm) L x 39" (99 cm) W x 46" (117 cm) H
• Loading height: 40" (1.0 m)
• Weight: 135 lb (61 kg)

Technical specifications

• Model: SB09
• Type: Mixer, bale breaker, semi-automatic filling system
• Designed to minimize damage to peat moss fibres
• Mixing capability: soil, fertilizer, water, peat moss, bark, etc.
• Mixing time: less than 2 minutes per batch
• Filling method: side door
• Loading height: 40" (1.0 m)
• Production capacity: 1.25 compressed bales (3.8 cu ft / ≈107 L)
• Power supply: 120 V single-phase, 60 Hz
• Motor: 1 x 1.5 HP (16.8 A)
• Dimensions (storing/transport): 52-1/2" (133 cm) L x 39" (99 cm) W x 46" (117 cm) H
• Weight: 135 lb (61 kg)
