Automatic pot filling machine SB 01

for wood barkwaterfor trays

Product overview

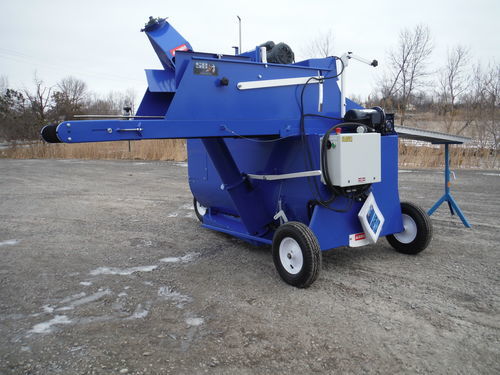

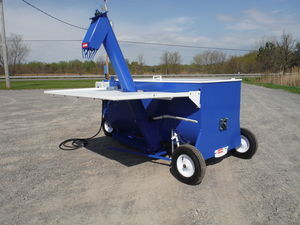

The SB01 is a compact, multifunction machine designed for greenhouse and nursery production. It fills flats, plug trays and pots, breaks compressed bales, mixes growing media and can fill small bags. The auger outlet is adjustable to handle larger pots or root balls. An upper brush cleans container rims and returns excess media to the machine. Mounted on 16" pneumatic wheels with a tow bar for easy on-site movement.

Production

• Capacity: 1 cubic yard (or 3 compressed bales of 3.8 cu ft)
• Container max size: up to 18" (45 cm) wide x 12" (30 cm) high
• Fill rate: up to 1,000 containers per hour
• Mixing and/or bale breaking: less than 2 minutes per batch
• Suitable media: peat moss, light soil; can add water, fertilizer and small bark

Power

• Standard: 220 V single phase 60 Hz (other voltages available)
• 1 x 5 HP motor (23.0 A) for mixer, bale breaker and auger
• 1 x 1/3 HP motor (3.3 A) for brush
• 1 x 1/2 HP D.C. variable speed motor (2.5 A) for conveyor filling system
• Total current: 28.8 A
• Different power configurations available as options

Dimensions

• Working position: 86" (2.18 m) length x 98" (2.50 m) width x 72" (1.80 m) height
• Transport/storage position: 86" (2.18 m) length x 56" (1.42 m) width x 72" (1.80 m) height
• Loading height: 43" (1.10 m)
• Weight: 1,200 lb (544 kg)
• Wheels: 16" pneumatic

Options

• SB20 bale hoist
• Vibrating conveyor for plug cell trays to improve even compaction
• Alternate power/voltage configurations

Technical specifications

• Model: SB01
• Function: flat and pot filler, bale breaker, mixer and small bag filler
• Capacity: 1 cubic yard (or 3 compressed bales of 3.8 cu ft)
• Container max size: 18" (45 cm) wide x 12" (30 cm) high
• Fill rate: up to 1,000 containers/hour
• Motors: 5 HP (mixer/breaker/auger) + 1/3 HP (brush) + 1/2 HP DC (conveyor)
• Power supply: 220 V single phase 60 Hz (options available)
• Total current: 28.8 A
• Weight: 1,200 lb (544 kg)
• Mobility: 16" pneumatic wheels and tow bar
