Wood bark big bale breaker SB 02

mobilepeatfor soil

Overview

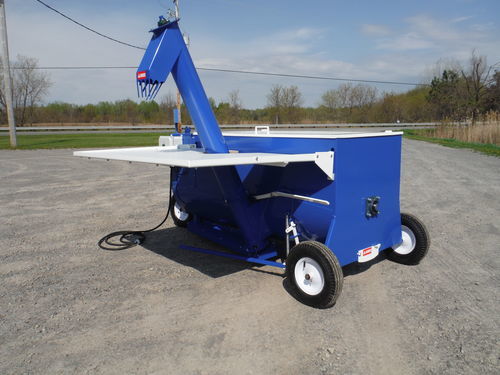

Developed for nurseries, the SB02 with its filling system allows easy incorporation of bulbs or shrubs during container filling. The SB02 is primarily a bale mixer and decompressor engineered to minimize damage to the fibre of your growing medium. Its low working height facilitates loading. With auger feed and foot pedal control, it functions as an efficient semi-automatic filler or as a feed unit for another machine. Mounted on 16" pneumatic wheels and fitted with a tow bar for easy movement.

Main features

• Combined machine: mixer, bale decompressor and semi-automatic filler.
• Insertion of bulbs or shrubs during container filling.
• Auger feed and foot pedal activation.
• Can operate standalone or feed downstream equipment.
• 16" pneumatic wheels and tow bar for mobility.

Production

• Capacity: 1 cubic yard or 3 bales of 3.8 ft³.
• Mixes soil and/or decompresses bales in less than one minute.
• Suitable for peat moss or light soil; water, fertilizer and small bark pieces can be added.

Electrical (power)

• 220 Volts single-phase 60 Hz.
• 1 × 5 HP motor, 23 Amps for mixer and auger.

Dimensions & weight
- Working position: 86" (2.18 m) long × 98" (2.5 m) wide × 72" (1.8 m) high
- Transport/storage position: 86" (2.18 m) × 56" (1.42 m) × 72" (1.8 m)
- Loading height: 43" (1.1 m)
- Weight: 700 lb (317 kg)

Options

• SB20 hoist for bales.
• Different voltages available.

Technical characteristics / specifications

• Model: SB02
• Type: bale mixer and decompressor with semi-automatic filler.
• Capacity: 1 cubic yard or 3 bales of 3.8 ft³.
• Decompression/mixing time: < 1 minute.
• Power supply: 220 V single-phase 60 Hz (standard); multi-voltage option available.
• Motor: 1 × 5 HP, 23 A (for mixer and auger).
• Loading height: 43" (1.1 m).
• Working dimensions: 86" × 98" × 72" (2.18 m × 2.5 m × 1.8 m).
• Transport dimensions: 86" × 56" × 72" (2.18 m × 1.42 m × 1.8 m).
• Weight: 700 lb (317 kg).
• Wheels: 16" pneumatic; tow bar supplied.
• Available accessories: SB20 hoist, bag supports (options shown in gallery).
