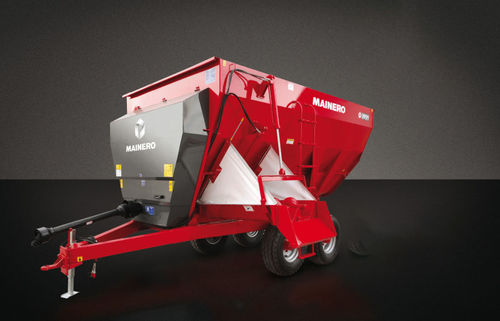

Towed feed mixer 29 series

side discharge3-augerPTO-driven

Load volume: 8,5 m3. Maximum load capacity: 3.500 Kg* Tractor requirement Minimum power: 60 CV (DIN) Power take off: 540 RPM – 6 spline Hydraulic group: 2 Outputs for double effect cylinders for: - Height and drive of unload augers. - Discharge gate opening and closing. Drive: Protected PTO shaft. Reducer group of gears and roller chains. Safety system: Fuse overload limiter. Mixing system: 3 helical augers. Mixing time: 2 to 4 minutes Discharge Type: By augers conveyor (quantity 2). Drive: Mechanic, automatic clutch. Discharge gate opening: From the tractor hydraulic distributor. Magnetic plates: Optional Equipment. Discharge time: Adjustable. Minimum 2 to 4 minutes. Programmable electronic scale: Optional equipment. Admitted materials Concentrated and dry by-products, corn and sorghum silage. Wet grain, fine chopped pasture silage, etc. as complement of a ration. Ground hay. Wheel axle: A wheel axle with adjustable simple wheel in three positions. tires: High flotation. Size 400/55 – 22.5 (quantity 2). Optional wheel axle: Independent adjustable rockers in three positions. Tires 10.00 x 16 – 10 ply (quantity 4)
