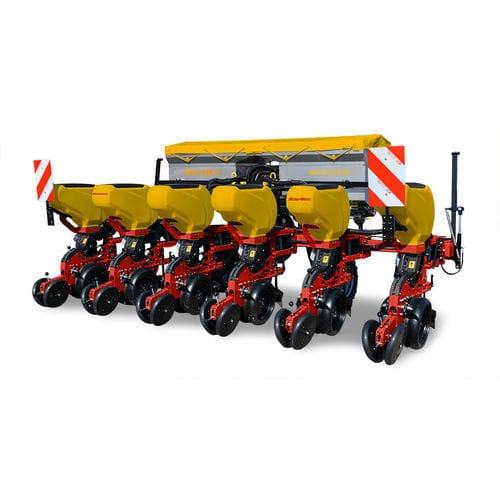

Pneumatic precision seed drill MS 8130 ELEKTRO

disc6-rowstractor-mounted

The hydraulic telescopic tool bar allows to shift easily and quickly from working position into transport position. The planter is very compact and has a low overhanging weight. The electric system of the transmission guarantees instantaneous seeding during restarts and cancellation of slippage. It is possible to automatically adjust the seeding rate based on GPS coordinates (uniform rate across the working width) and to interrupt each single planting unit. The absence of a battery dedicated to the electrical system eliminates the need for specific maintenance. Planting unit 8000-ELEKTRO “V” shaped 1” rubber closing wheels Telescopic tool bar 3 point hitch New cast wheel support Quick-Set system P.T.O 540 rpm P.d.p. 750 rpm (for planters up to 7 rows) Cardan shaft with free wheel 1” 3/8 Z6-Z6 (510 mm long) Vacuum meter ISOBUS compliant* electric motor ECU and electric transmission on each row (virtual terminal not included) Maintenance-free, tractor independent power supply; no battery required Cardan shaft with free wheel 1” 3/8 Z6-Z6 Vacuum meter Hydraulic automatic disc row marker Centralized gearbox 21 ratios One set of seed plates Partitioning wall for small seeds and dropping device Seed emptying collector Front drive wheels: Two 20x8.00-10 (200 mm)
